3M™ Resin Bond CBN Wheels and Tools, 1V1, 4X.150X1-1/4, X=1/4, V=45 B280 144DI - MMMRBBW36692
3M™ Resin Bond CBN Wheels and Tools, 1V1, 4X.150X1-1/4, X=1/4, V=45 B280 144DI - MMMRBBW36692
SKU
#7010491972
Call for Availability
3M™ CBN Wheel 144DI is used for grinding primary and secondary relief angles on cutting tools made of tool steel and high speed steel. This resin bonded wheel offers both free cutting action and good form retention, as well as increased thermal stability during higher temperature grinding operations.
| Specification(s) | |
|---|---|
| UPC Code | 00076308237462 |
| Abrasive Material | CBN |
| Center Hole Diameter (Imperial) | 1.25 in |
| Overall Diameter (Imperial) | 4.0 in |
| Overall Thickness (Imperial) | 0.15 in |
| Product Form | Wheel |
| Product Number | 144DI |
| Wheel Type | 1V1 |
| Country of Origin | USA |
| Shipping Quantity | 1.0 |
| Brand | 3M |
High Quality Relief Grinding
3M™ CBN Wheel 144DI was designed for high performance primary and secondary relief grinding. This process is used in the production and sharpening of cutting tools. Cutting edges are typically "relieved" to enhance chip clearance. Primary relief involves removing material directly behind the cutting edge. For secondary relief, a slight bevel is ground next to the primary relief.
The Right Wheel for Every Job

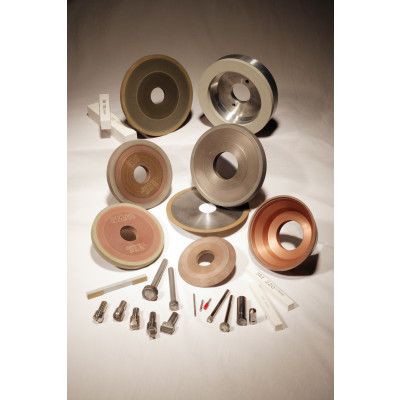

3M provides a broad portfolio of superabrasive wheels used for your round tool relief and clearance angle applications. From short runs and re-sharpening to "lights-out" and long production runs, 3M has the wheel design to meet your needs.
