3M™ Diamond Dressing Tools, Rolls, Discs, SHAPED TOOL, 90DEG, 1/8X1 PHONOPOINT P0590S2 - MMMTOOL29027

3M™ Diamond Dressing Tools, Rolls, Discs, SHAPED TOOL, 90DEG, 1/8X1 PHONOPOINT P0590S2 - MMMTOOL29027

SKU
#7010481729
Part #: 20792
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


The 3M™ Diamond Phono Point Tool features sharp, sturdy diamonds used for internal radii dressing applications. This tool is for general toolroom dressing on concave and convex small diameter grinding wheels.
More Information
Specification(s)
Part numberP0590S2
UPC Code00051115207921
Abrasive MaterialDiamond
ApplicationGrinding
Point TypePhono Point
Product FormDressing & Truing
Shank Diameter (Imperial)0.125 in
Shank Length (Imperial)1.0 in
SubstrateSoft Metal
Country of OriginUSA
Shipping Quantity1.0
Brand3M
no_image
Safety Data Sheets (PDF , 0B)

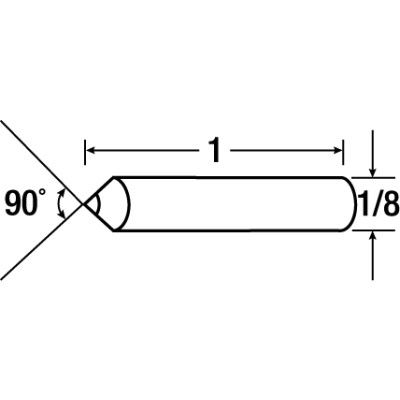

For small diameter, fine grit grinding wheels, the 3M™ Diamond Phono Point Tool is engineered to dress with precision their internal radii and more intricate forms. This phono point tool is manufactured using the finest quality diamonds and durable steel for consistent cutting, life and quality. This tool features a 1/8 x -1-inch shank and diamond at 60, 75 or 90 degree angles.

Truing and Dressing Your Diamond or CBN Wheels

Cost effective use of diamond and CBN wheels requires truing and dressing, two distinct and necessary functions

Truing restores the shape of the diamond or cBN wheel

Dressing prepares the wheel for aggressive action. This function is necessary after a wheel is trued

Truing generally leaves the grinding surface of a wheel smooth and unable to remove material from a workpiece effectively.

Dressing removes some of the bond material from the surface of a trued wheel to expose the diamond crystals and make the wheel grind efficiently. Dressing also removes tiny pieces of material from the pores of the wheel face to prevent loading, which can cause vibration and leave burn marks on the workpiece.


  • High quality, sharp diamonds
  • For small diameter fine grit grinding wheels
  • The phono point tool is used for internal radii dressing with to a 60, 75 or 90 degree angle
  • Concave and convex dressing
  • 1/8 x -1-inch shank
