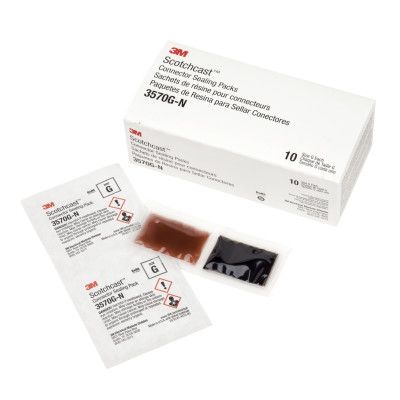

3M™ Scotchcast™ Connector Sealant 3570G-N, Black, Bulk

3M™ Scotchcast™ Connector Sealant 3570G-N, Black, Bulk

SKU
#7100230623
Part #: 29282
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Scotchcast™ Electrical Resin 3570G N insulates and offers protection for electrical spring connectors against water, dust, soil and other environmental elements. It is a 2 part, epoxy based, liquid resin provides excellent flexibility and generates its own heat to cure. This flame retardant resin is stable in applications at elevated temperatures up to 250 °F (121 °C).
More Information
Specification(s)
Part number3570GN
UPC Code00638060292822
Country of OriginUSA
Shipping Quantity1000.0
Brand3M
no_image
Safety Data Sheets (PDF , 0B)

3M™ Scotchcast™ Electrical Resin 3570G N provides a tough, multi purpose, moisture sealing that comes with a unique, closed mixing pouch for mixing the resin. It is a convenient insulating and encapsulating resin for electrical spring connection. The thermosetting resin does not melt or run after curing. It is suitable for potting and protecting a wide variety of electrical spring connections. This resin is rated for 0 to 600 kV voltage applications. RoHS 2011/65/EU Compliant.


  • 60 Shore D hardness
  • Has 8 to 12-minute gel time at 73 °F (23 °C)
  • Safeguards electrical spring connectors against water, dust, soil and other environmental elements
  • Comes in black color
  • Includes thermo-setting resin
  • Withstands temperatures of 250 °F (121 °C)
  • Elongates 57% longer than its original size for easy insulation or wrapping
  • Insulates electrical spring connectors
