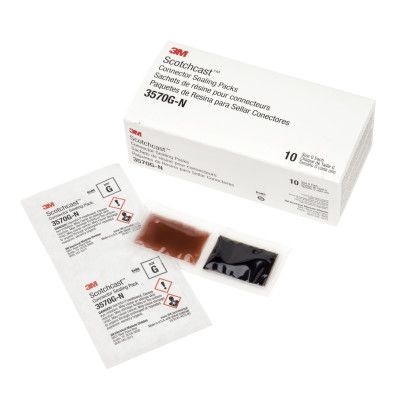

3M™ Scotchcast™ Connector Sealing Pack 3570G-N, 100/Case

3M™ Scotchcast™ Connector Sealing Pack 3570G-N, 100/Case

SKU
#7000133446
Part #: 59186
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Scotchcast™ Electrical Resin 3570G N insulates and offers protection for electrical spring connectors against water, dust, soil and other environmental elements. It is a 2 part, epoxy based, liquid resin provides excellent flexibility and generates its own heat to cure. This flame retardant resin is stable in applications at elevated temperatures up to 250 °F (121 °C).
More Information
Specification(s)
Part number3570G-N
UPC Code10051128591861
ApplicationCable Connection
Cable Accessory ProductsElectrical Resins
Cable ShieldingArmored
Cable TypeSolid Dielectric Cables
Color FamilyBlack
Connection TypeWire
Cure MethodRoom
Dielectric Strength (V/mil)435 V/mil
Elongation57.0 %
Flame RetardantYes
FlexibilityRigid
FormLiquid
Hardness60 Shore D
Indoor/OutdoorBoth
MaterialEpoxy
Number of Conductors3.0
Product ColorBlack
Product TypeAccessory
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice TypeConnector
Tensile Strength (Imperial)1779 Pound-Force Per Square Inch
Typical Splice Length52.0 in
Voltage0 kV - 600 kV
Voltage ApplicationMedium Voltage
Wire Connector TypeWire Connector Tools
Country of OriginUSA
Unit of Use - Customary Net Weight0.037 LBS
Consumer - Previous Packaging Level UnitEACH
Shipping Quantity100.0
Brand3M
no_image
Safety Data Sheets (PDF , 0B)

3M™ Scotchcast™ Electrical Resin 3570G N provides a tough, multi purpose, moisture sealing that comes with a unique, closed mixing pouch for mixing the resin. It is a convenient insulating and encapsulating resin for electrical spring connection. The thermosetting resin does not melt or run after curing. It is suitable for potting and protecting a wide variety of electrical spring connections. This resin is rated for 0 to 600 kV voltage applications. RoHS 2011/65/EU Compliant.


  • 60 Shore D hardness
  • Has 8 to 12-minute gel time at 73 °F (23 °C)
  • Safeguards electrical spring connectors against water, dust, soil and other environmental elements
  • Comes in black color
  • Includes thermo-setting resin
  • Withstands temperatures of 250 °F (121 °C)
  • Elongates 57% longer than its original size for easy insulation or wrapping
  • Insulates electrical spring connectors
