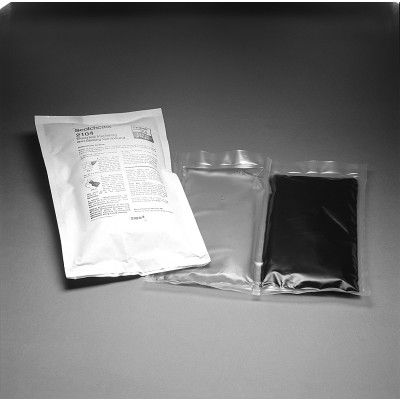

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104B, 7.4 oz, 10 /Case

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104B, 7.4 oz, 10 /Case

SKU
#7000145509
Part #: 31382
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104 is a 2 part, liquid type, semi flexible resin useful for providing permanent splice protection. This polyurethane resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, potting, sealing, insulating and more.
More Information
Specification(s)
Part number2104B
UPC Code00054007313823
Cable Accessory ProductsElectrical Resins
Cable Insulation Outside Diameter Range0.87 in - 1.06 in
Cable ShieldingJacketed Concentric Neutral (JCN)
Color FamilyGreen
Connector IncludedCIR-21
Cure MethodRoom
Dielectric Strength (V/mil)524 V/mil
Elongation98.0 %
FlexibilityFlexible
FormLiquid
Gel Time18 min @ 73 °F (23 °C)
Hardness70 Shore A
Lug/Stem Connector Included in KitNo
MaterialPolyurethane
Maximum Operating Temperature130 Degree Celsius
Number of Conductors1.0
Product ColorGreen
Product KeyBRES BULK RESINS FJC
Product Series5450 Series
Product TechnologyMolded Rubber
Product TypeSplice
Resin MatrixUnfilled
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Splice TypeInline Repair
Temperature RatingClass B
Tensile Strength (Imperial)444 Pound-Force Per Square Inch
Voltage28 kV
Country of OriginUSA
Shipping Quantity10.0
Brand3M
no_image
Safety Data Sheets (PDF , 0B)

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104 has a low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible property and good adhesion property after curing. It is ideal for electrical applications that need good handling and performance characteristics. High dielectric strength offers a very good electrical insulating property to the resin. The resin allows you to insulate conductors of multi core splices operating at 1 kV or less. It is used in 72 N, 85 Series kits. ASTM Approved and RoHS 2011/65/EU Compliant‎.


  • 70 Shore A hardness
  • Has 18-minute gel time at 73 °F (23 °C)
  • Useful for replacing or repairing the jacket on both single- and multi-core power cables
  • Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
  • Elongates 98% longer than its original size for easy insulation or wrapping
  • Withstands a voltage rating of 1 kV or less
