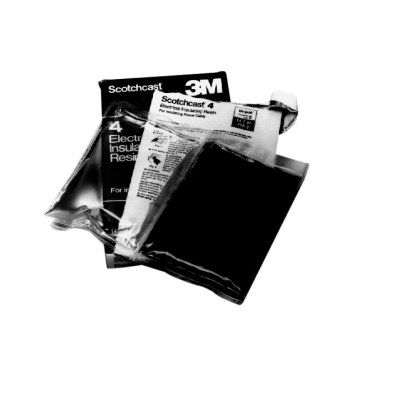

3M™ Scotchcast™ Electrical Insulating Resin 4N-A, (3.1 oz), 10 /Case
3M™ Scotchcast™ Electrical Insulating Resin 4N-A, (3.1 oz), 10 /Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ Scotchcast™ Electrical Insulating Resin 4N, with nozzel and guard bag, is a 2 part, insulating and encapsulating, epoxy based, liquid resin that generates its own heat to cure. Compatible with solid/synthetic cable insulations and jackets, this resin makes an excellent insulator and sealer for cable splicing.
Specification(s) | |
---|---|
Part number | 4N-A |
UPC Code | 00051128613474 |
Cable Accessory Products | Electrical Resins |
Cure Method | Room |
Flexibility | Rigid |
Form | Liquid |
Gel Time | 16 min @ 73 °F (23 °C) |
Hardness | 80 Shore D |
Material | Epoxy |
Maximum Operating Temperature | 130 Degree Celsius |
Product Color | Black |
RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
Tensile Strength (Imperial) | 4900 Pound-Force Per Square Inch |
Country of Origin | USA |
Shipping Quantity | 10.0 |
Brand | 3M |
Safety Data Sheets (PDF , 0B)
3M™ Scotchcast™ Electrical Resin 4N A is a multi purpose moisture sealing resin that remains stable, even at elevated temperatures. The resin bonds to itself and to nearly all modern cable jackets. It allows you to splice solid dielectric and oil filled cables up to 8 kV and to jacket high voltage splices. This resin is used in 82 H, 82 B1, 85 14CP and 90 B1 Series splice kits. ASTM Approved and RoHS 2011/65/EU Compliant.
