3M™ Scotchcast™ Electrical Powder Resin 260, 44.1 lb(20 kg.), 1 Drum

3M™ Scotchcast™ Electrical Powder Resin 260, 44.1 lb(20 kg.), 1 Drum

SKU
#7100269245
Part #: 45269
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Scotchcast™ Electrical Resin 260 is a 1 part, powder resin used for coating flat surfaces, corners and high points. This general purpose epoxy based, powder resin has a very low viscosity property, which makes it easy to infuse on any surface. The resin melts when it's heated, it flows to a controlled extent and then cures, bonding to the surface in a uniform, thick coating.
More Information
Specification(s)
Part number260
UPC Code00068060452696
Applicable by Electrostatic Fluid BedYes
Applicable by Electrostatic SprayYes
Applicable by Fluid Bed DipYes
Applicable by Venturi SprayYes
ApplicationUtilities & Power: Coatings for Insulation
Color FamilyGreen
Cure MethodOven
Flame RetardantNo
FlexibilityRigid
FormPowder
MaterialEpoxy
Mining Sector ApprovalNo
Product ColorGreen
Product TypeElectrical Resin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Storage Time in Months24.0
Temperature RatingClass H (<=180 deg C)
Voltage RatingInsulating
What Needs to be CoatedOther
Country of OriginPRC
Shipping Quantity44.0
Brand3M


  • Has 12 to 16-second gel time at 380 °F (193 °C)

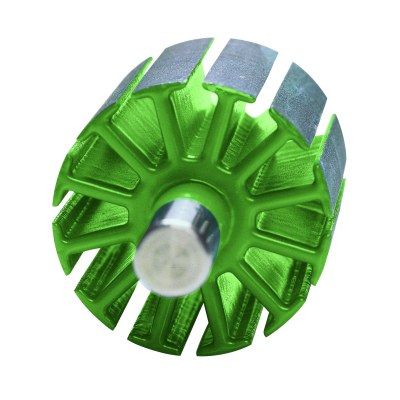

  • Useful for moisture-proofing and insulating armatures, stators, buss bars and toroid cores
  • Withstands temperatures of 356 °F (180 °C)
  • Compatible with electrostatic spray, fluid bed dip and venturi spray‎
  • Heat-, chemical- and moisture-resistant
  • UL Listed, EIS Approved and RoHS 2011/65/EU Compliant‎
