3M™ Scotchcast™ Electrical Powder Resin 263, 60 lb, 1/Case
3M™ Scotchcast™ Electrical Powder Resin 263, 60 lb, 1/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ Scotchcast™ Electrical Resin 263 is a 1 part, powder resin used for coating flat surfaces, corners and high points. This general purpose epoxy based, rapid cure resin has a very low viscosity property, making it easy to infuse on any surface. The resin melts when it's heated, flows to a controlled extent and then cures, bonding to the surface in a continuous, uniform, thick coating.
Specification(s) | |
---|---|
Part number | 263 |
UPC Code | 00054007276531 |
Applicable by Electrostatic Fluid Bed | No |
Applicable by Electrostatic Spray | No |
Applicable by Fluid Bed Dip | Yes |
Applicable by Venturi Spray | Yes |
Application | Utilities & Power: Coatings for Insulation |
Cable Accessory Products | Electrical Resins |
Color Family | Transparent |
Container Size (Imperial) | 60.0 lb |
Cure Method | Oven |
Form | Powder |
Material | Epoxy |
Product Color | Transparent |
Product Type | Electrical Resin |
RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
Temperature Rating | Class H (<=180 deg C) |

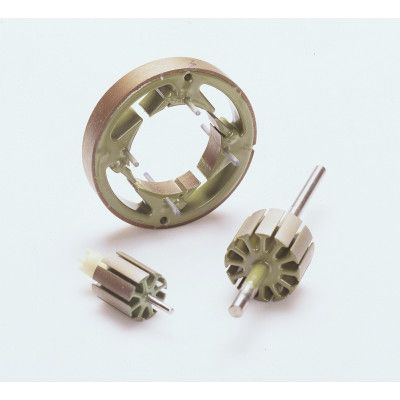

What Needs to be Coated | Motor or Transformer Iron |
Country of Origin | USA |
Shipping Quantity | 60.0 |
Brand | 3M |
Safety Data Sheets (PDF , 0B)
3M™ Scotchcast™ Electrical Resin 263 has a low gel point rating to ensure a quick curing process. The resin is made from a fusion blend process. It offers the components necessary to provide a complete cure and meet required performance properties. It provides a continuous, tough moisture and chemical resistant dielectric coating to a variety of substrates. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin, thus making it a ideal insulator for creating a barrier between 2 conductors. UL Listed and RoHS 2011/65/EU Compliant.
