3M™ Scotchcast™ Electrical Resin 210N, (16 - 2# units = 1 case)
3M™ Scotchcast™ Electrical Resin 210N, (16 - 2# units = 1 case)
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

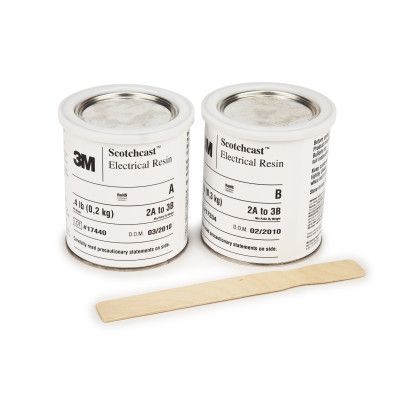

3M™ Scotchcast™ Electrical Resin 210N is a 2 part, thixotropic, liquid resin. It is useful for insulating and sealing motor winding end turns and slot sections. This filled epoxy based resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, patching, insulating and more.
Specification(s) | |
---|---|
Part number | 210N-16KITS/CTN |
UPC Code | 00051128613849 |
Cure Method | Room |
Flexibility | Semi-flexible |
Form | Liquid |
Material | Epoxy |
Product Color | Reddish Brown |
Product Type | Electrical Resin |
Resin Matrix | Thixotropic |
RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
Country of Origin | USA |
Shipping Quantity | 1.0 |
Brand | 3M |
Safety Data Sheets (PDF , 0B)
3M™ Scotchcast™ Electrical Resin 210N has a low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin. It has a high flash point, helping prevent any fire hazard due to quick ignition. Since the resin exhibits hydrolytic stability property, it minimizes quick chemical decomposition, thus providing long lasting usage. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.
