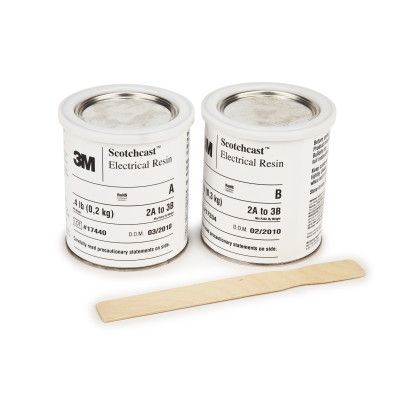

3M™ Scotchcast™ Electrical Resin 235 Part A (20 lb), 1 Kit/Drum
3M™ Scotchcast™ Electrical Resin 235 Part A (20 lb), 1 Kit/Drum
3M™ Scotchcast™ Electrical Resin 235 Part A (20 lb), 1 Kit/Drum
SKU
#7000058911
Part #: 8048
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
For industrial/occupational use only. Not for consumer sale or use.
3M industrial and occupational products are intended, labeled, and
packaged for sale to trained industrial and occupational customers for
workplace use. Unless specifically stated otherwise on the applicable
product packaging or literature, these products are not intended,
labeled, or packaged for sale to or use by consumers (e.g., for home,
personal, primary or secondary school, recreational/sporting, or other
uses not described in the applicable product packaging or literature),
and must be selected and used in compliance with applicable health and
safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all
product literature, user instructions, warnings, and other limitations,
and the user must take any action required under any recall, field
action, or other product use notice. Misuse of 3M industrial and
occupational products may result in injury, sickness, death, or property
damage. For help with product selection and use, consult your on-site
safety professional, industrial hygienist, or other subject matter
expert.
3M™ Scotchcast™ Resin 235 is a 2 part, oven curing, semi flexible, unfilled, epoxy based, liquid resin. Resin with low viscosity and good wetting characteristics is formulated for complete impregnation of small coils. This resin is suitable for a variety of general purpose applications.
3M™ Scotchcast™ Electrical Resin 235 has good wetting and low viscosity properties. Resin has permanent semi flexibility, thermal shock and impact resistance, good electrical and adhesion properties. This resin has the mechanical strength and flexibility required for high quality insulation of large castings including motors, transformers and coils. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.
55 Shore D hardness
Has 18-minute gel time at 248 °F (120 °C)
For general-purpose applications
Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
Elongates 75% longer than its original size for easy insulation or wrapping
Offers permanent semi flexibility, thermal shock and impact resistance, good electrical and adhesion properties
