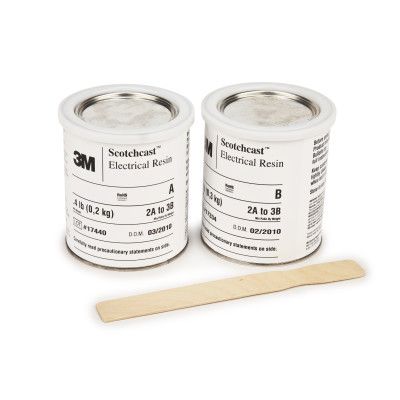

3M™ Scotchcast™ Electrical Resin 250 (10 lb), 1 Kits/Case

3M™ Scotchcast™ Electrical Resin 250 (10 lb), 1 Kits/Case

SKU
#7010351941
Part #: 34514
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Scotchcast™ Resin 250 is a 2 part, oven curing, unfilled, epoxy based, liquid resin. The rigid resin is formulated for use in applications where adhesion, mechanical strength and good electrical properties at high temperatures are required.
More Information
Specification(s)
Part number250-1GAL-10LBS/KIT
UPC Code00054007345145
Base PolymerEpoxy
Color FamilyBrown
Cure MethodOven
Cure Temperature>75 Degree Celsius
Dielectric Strength (V/mil)325 V/mil
Elongation2.5 %
Flammability RatingNot Self Extinguishing
FlexibilityRigid
FormLiquid
Gel Time17 min @ 250 °F (121 °C)
Hardness25 Barcol
MaterialEpoxy
Mix RatioWt 1:1 Vol (%) 50:50
Mixed ViscosityLow (<10,000 cpi)
Product ColorBrown
Product TypeElectrical Resin
Resin CureOven Cure Unfilled Resins
Resin MatrixUnfilled
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Temperature RatingClass F (<=155 deg C)
Tensile Strength (Imperial)7780 Pound-Force Per Square Inch
Thermal ConductivityLow (<0.25 W/m-K)
Country of OriginUSA
Unit of Use - Customary Net Weight12.057 LBS
Shipping Quantity1.0
Brand3M
no_image
Safety Data Sheets (PDF , 0B)

3M™ Scotchcast™ Electrical Resin 250 has distinguishing features such as high temperature stability, good electrical and physical properties. This low viscosity resin is well suited for a variety of general purpose applications. Resin has excellent high temperature physical strength and electrical properties. RoHS 2011/65/EU Compliant.


  • 25 Barcol hardness
  • Has 17-minute gel time at 250 °F (121 °C)
  • For use in applications where adhesion, mechanical strength and good electrical properties at high temperatures are required
  • Withstands temperatures of 311 °F (155 °C)
  • Elongates 2.5% longer than its original size for easy insulation or wrapping
  • Excellent high-temperature, physical strength and electrical properties
