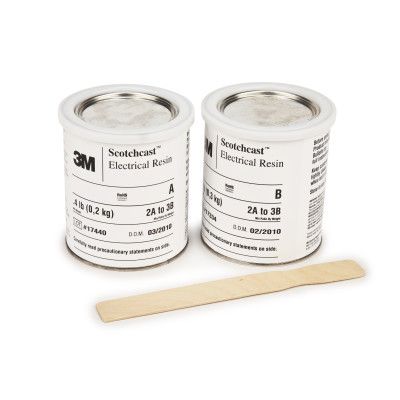

3M™ Scotchcast™ Electrical Resin 251 (20 lb), 1 Kits/Case

3M™ Scotchcast™ Electrical Resin 251 (20 lb), 1 Kits/Case

SKU
#7000006255
Part #: 34516
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Scotchcast™ Electrical Resin 251 is a 2 part, oven curing, liquid resin that's useful for electronic and electrical applications requiring the highest level of protection. This filled epoxy based resin has a medium viscosity property, which makes it easy to infuse on any surface. It is useful for applications that include filling, patching, insulating and more.
More Information
Specification(s)
Part number251-1GAL-20LBS/KIT
UPC Code00054007345169
Base PolymerEpoxy
Color FamilyBrown
Container Size (Imperial)20.0 lb
Cure MethodOven
Cure Temperature>75 Degree Celsius
Dielectric Strength (V/mil)425 V/mil
Elongation7.0 %
Flammability RatingSelf Extinguishing
FlexibilityRigid
FormLiquid
Gel Time22 min @ 250 °F (121 °C)
Hardness40 Barcol
MaterialEpoxy
Mix RatioWt 1:1 Vol (%) 50:50
Mixed ViscosityMedium (10,000-75,000 cpi)
Product ColorBrown
Product TypeElectrical Resin
Resin CureOven Cure Filled Resins
Resin MatrixFilled
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Temperature RatingClass F (<=155 deg C)
Tensile Strength (Imperial)5280 Pound-Force Per Square Inch
Thermal ConductivityMedium (0.25 W/m-K - 0.40 W/m-K)
Voltage1 kV
Country of OriginUSA
Shipping Quantity1.0
Brand3M

3M™ Scotchcast™ Electrical Resin 251 has good handling characteristics. The medium viscosity, rigid resin is suitable for applications where physical strength and excellent electrical properties at elevated temperatures are required. ASTM Approved, MIL I 16923E Certified and RoHS 2011/65/EU Compliant.


  • 40 Barcol hardness
  • Has 22-minute gel time at 250 °F (121 °C)
  • Useful for coating coils, transformers, motors, modules, electrical and electronic components
  • Withstands temperatures of 311 °F (155 °C)
  • Elongates 7% longer than its original size for easy insulation or wrapping
  • Chemical- and moisture-resistant
