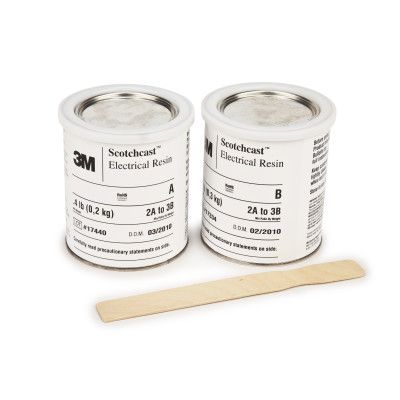

3M™ Scotchcast™ Electrical Resin 282 (17 lb), 1 Kits/Case

3M™ Scotchcast™ Electrical Resin 282 (17 lb), 1 Kits/Case

SKU
#7000058444
Part #: 40409
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Scotchcast™ Electrical Resin 282 is a 2 part, oven curing, liquid resin used for electronic and electrical applications requiring the highest level of protection. This thixotropic, epoxy based resin has a low viscosity and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, patching and insulating.
More Information
Specification(s)
Part number282-1GAL-17LBS/KIT
UPC Code00051138404093
Base PolymerEpoxy
Color FamilyWhite
Cure MethodOven
Cure Temperature>75 Degree Celsius
Dielectric Strength (V/mil)375 V/mil
Elongation45.0 %
Flammability RatingSelf Extinguishing
FlexibilitySemi-flexible
FormLiquid
Gel Time23 min @ 250 °F (121 °C)
Hardness65 Shore D
MaterialEpoxy
Mix RatioWt 2:3 Vol (%) 37:63
Mixed ViscosityMedium (10,000-75,000 cpi)
Product ColorCream
Product TypeElectrical Resin
Resin CureOven Cure Thixotropic Resins
Resin MatrixThixotropic
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Temperature RatingClass F (<=155 deg C)
Tensile Strength (Imperial)2100 Pound-Force Per Square Inch
Thermal ConductivityHigh (>0.40 W/m-K)
Country of OriginUSA
Unit of Use - Customary Net Weight18.96 LBS
Shipping Quantity1.0
Brand3M

3M™ Scotchcast™ Electrical Resin 282 has a low gel point rating to ensure a quick curing process when kept in a warm environment. The high tensile strength of the resin exhibits a semi flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin. It has a high flash point, preventing any fire hazard due to quick ignition. Since the resin exhibits a hydrolytic stability property, it minimizes quick chemical decomposition and thus providing long lasting usage. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.


  • Has 23-minute gel time at 250 °F (121 °C)
  • Useful for coating coils, transformers, motors, modules, electrical and electronic components
  • Withstands temperatures of 311 °F (155 °C)
  • Elongates 45% longer than its original size for easy insulation or wrapping
  • Chemical- and moisture-resistant
  • MIL-I-16923E Certified and RoHS 2011/65/EU Compliant
