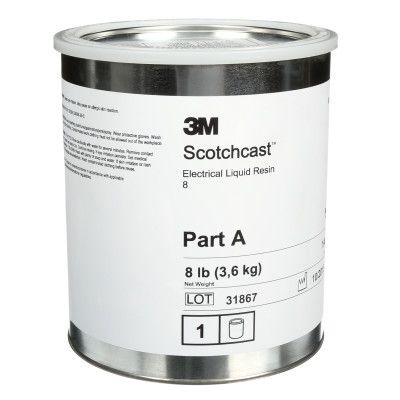

3M™ Scotchcast™ Electrical Resin 8N, 16 lb kit, 1 Kits/Case

3M™ Scotchcast™ Electrical Resin 8N, 16 lb kit, 1 Kits/Case

SKU
#7010319957
Part #: 61361
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Scotchcast™ Electrical Resin 8N is a 2 part, liquid resin that is useful for electronic and electrical applications requiring the highest level of protection in the toughest environments. This unfilled epoxy based resin has a low viscosity property, which makes it easy to infuse on any surface. It is useful for applications that include filling, patching, insulating and more.
More Information
Specification(s)
Part number8N-16LBS/KIT
UPC Code00051128613610
Cure MethodRoom
FlexibilitySemi-flexible
FormLiquid
MaterialEpoxy
Product ColorClear Amber
Product TypeElectrical Resin
Resin MatrixUnfilled
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Country of OriginUSA
Unit of Use - Customary Net Weight17.957 LBS
Shipping Quantity1.0
Brand3M
no_image
Safety Data Sheets (PDF , 0B)

3M™ Scotchcast™ Electrical Resin 8N has a low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. The high dielectric strength offers excellent electrical insulating property to the resin. It has a high flash point, helping prevent any fire hazard in electrical components due to quick ignition. Since the resin exhibits a hydrolytic stability property, it minimizes quick chemical decomposition, thus providing long lasting usage. MIL I 16923E, MIL I 16923G Certified and RoHS 2011/65/EU Compliant.


  • 68 Shore D hardness
  • Has 30-minute gel time at 140 °F (60 °C)
  • Useful for coating coils, transformers, motors, modules, electrical and electronic components
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Elongates 75% longer than its original size for easy insulation or wrapping
  • Chemical- and moisture-resistant
  • RoHS 2011/65/EU Compliant
