3M™ Scotchcast™ Flame-Retardant Compound 2131 Part B, (21kg/46.5 lb), 1/DR
3M™ Scotchcast™ Flame-Retardant Compound 2131 Part B, (21kg/46.5 lb), 1/DR
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

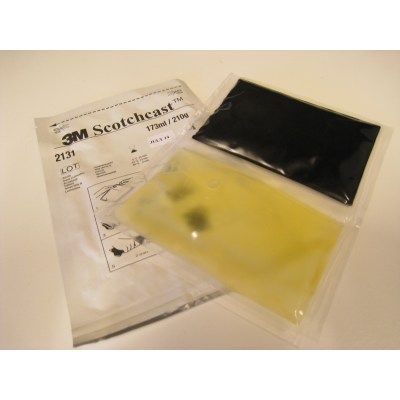

3M™ Scotchcast™ Electrical Resin 2131 is a 2 part, flame retardant compound, useful for coating cable jackets when splicing or repairing mine and portable cables. This permanent, polyurethane, liquid type resin has a unique formulation used in rugged conditions. The high dielectric strength offers a very good electrical insulating property to the resin.
Specification(s) | |
---|---|
Part number | 2131-PART B 5 GAL |
UPC Code | 00051128591826 |
Application | Sealing, electrical insulation and mechanical protection |
Cable Accessory Products | Electrical Resins |
Color Family | Black |
Cure Method | Room |
Dielectric Strength (V/mil) | 343 V/mil |
Elongation | 3.39 % |
Flame Retardant | Yes |
Flexibility | Flexible |
Form | Liquid |
Gel Time | 17 min @ 73 °F (23 °C) |
Hardness | 80 Shore A |
Material | Polyurethane |
Maximum Operating Temperature | 90ºC (194ºF) continuous; overload rating 130ºC (266ºF) |
Mining Sector Approval | Yes |
Product Color | Black |
Product Series | 2123 |
Product Type | Resin |
Resin Matrix | Filled |
RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
Storage Time in Months | 36.0 |
Tensile Strength (Imperial) | 1038 Pound-Force Per Square Inch |
Voltage | 1 kV |
Voltage Application | Low Voltage |
Voltage Rating | 0.6/1 kV |
Country of Origin | USA |
Shipping Quantity | 1.0 |
Brand | 3M |
3M™ Scotchcast™ Flame Retardant Resin 2131 has low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible property and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. It has a high flash point, preventing any fire hazard due to quick ignition. The flame retardant resin allows you to insulate cable splices operating up to 1 kV and to seal the crotch or sheath when terminating multi core cables. RoHS 2011/65/EU Compliant.
