3M™ Scotchcast™ Reenterable Electrical Insulating Resin 2123D (21.2 oz), 2.2 GALLONS, 1/Case
3M™ Scotchcast™ Reenterable Electrical Insulating Resin 2123D (21.2 oz), 2.2 GALLONS, 1/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

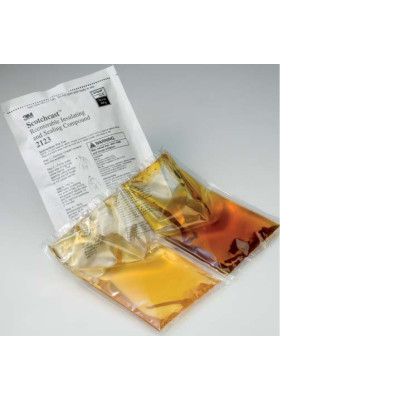

3M™ Scotchcast™ Electrical Resin 2123 is a soft, 2 part polybutadiene resin encapsulant. This resin has good handling and performance characteristics and is formulated for re enterable splice protection. This multi purpose, moisture sealing resin bonds to nearly all cable jackets.
Specification(s) | |
---|---|
Part number | 2123-2.2-GAL |
UPC Code | 00051128606148 |
Color Family | Multi-color |
Cure Method | Room |
Flame Retardant | No |
Flexibility | Soft |
Form | Liquid |
Gel Time | 62 min @ 73 °F (23 °C) |
Hardness | 0 Shore A |
Material | Polybutadiene |
Mining Sector Approval | No |
Product Color | Amber |
Resin Matrix | Unfilled |
RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
Storage Time in Months | 36.0 |
Voltage Rating | 0.6/1 kV |
Country of Origin | USA |
Unit of Use - Customary Net Weight | 14.91 LBS |
Shipping Quantity | 1.0 |
Brand | 3M |
Safety Data Sheets (PDF , 0B)
3M™ Scotchcast™ Electrical Insulating Resin 2123 has good wetting and low viscosity properties. This flexible resin ensures curing at room temperature and acts as an insulating material for cable splices operating up to 1 kV. It flows easily, even at low temperatures, while filling the enclosure and minimizing voids. ASTM Approved and RoHS 2011/65/EU Compliant.
