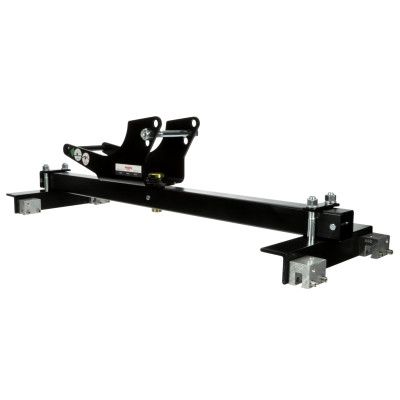

3M™ Protecta® Reusable Roof Anchor For Standing Seam 2190072, Fits 12 in, 24 in, 30 in, 32 in, 36 in Spacing
3M™ Protecta® Reusable Roof Anchor For Standing Seam 2190072, Fits 12 in, 24 in, 30 in, 32 in, 36 in Spacing
SKU
#7100237100
Part #:
16211
Call for Availability
Installs to flat or sloped standing seam roofs. System clamps to standing seams without special tools, anchorage point for an SRL. Non-penetrating design with four seam clamps allow for quick attachment without damaging the roof. Adjustable legs with simple bolt style legs allow the system to be used a variety of seam spacing. Portable and Reusable. Anchor can be removed and reinstalled.
| Specification(s) | |
|---|---|
| Part number | 2190072 |
| UPC Code | 00840779162116 |
| Anchor Hook Material | Metal |
| Anchor Install Type | Reusable |
| For Use With | 3M™ Protecta® Self-Retracting Lifeline (SRLs) |
| Housing Material | Aluminum & Stainless Steel |
| Material | Steel |
| Mounting Type | Portable & Reusable |
| Product Number | 2190072 |
| Product Type | Standing Seam Roof Anchor - For SRL |
| Recommended Application | Construction |
| Recommended Industry | Construction |
| Specifications Met | OSHA 1910.140 |
| Weight (Imperial) | 27.6 lb. |
| Weight Capacity | 420 lbs. (190 kg) |
| Weight Capacity (Imperial) | 310.0 lb. |
| Country of Origin | USA |
| Unit of Use - Previous Packaging Level Unit | EACH |
| Brand | 3M |
