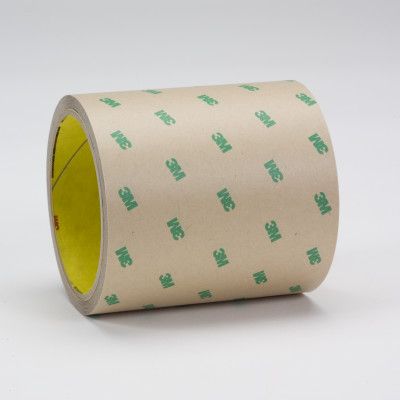

3M™ Adhesive Transfer Tape 9506, Clear, 24 in x 180 yd, 5 mil, Flag splices, 1 roll per case, Restricted

Name: 3M™ Adhesive Transfer Tape 9506, Clear, 24 in x 180 yd, 5 mil, Flag splices, 1 roll per case, Restricted
Brand: 3M
SKU: 7010334188

SKU

#7010334188

Call for Availability

For industrial/occupational use only. Not for consumer sale or use.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

3M™ Adhesive Transfer Tape 9506 features 3M™ High Performance Acrylic Adhesive 200MP, the industry standard for graphic attachment and die-cut parts. This 5 mil clear adhesive offers excellent shear strength, minimal edge lifting and reduced slippage on medium- to high-surface energy plastics. A 58# PCK liner provides excellent adhesive coverage and adds dimensional stability.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

More Information
Specification(s)
Brand	3M
Adhesive Type	Acrylic
Color Family	Transparent
Overall Length (Imperial)	180.0 yd
Overall Width (Imperial)	24.0 in
Product Key	9506
Product Number	9506
Substrate 1	Glass (Inked Glass - Ceramic)
Substrate 2	Glass
Total Tape Thickness Without Liner (Imperial)	5.0 mil
Country Of Origin	US
Customary Net Weight	55.467 LBS
Shipping Quantity	1.0
UPC Code	0000000000000

Product Information

A Powerful, Economical Choice for General Industrial Joining

Featuring 3M™ High Performance Acrylic Adhesive 200MP – the industry standard for graphic attachments – 3M™ Adhesive Transfer Tape 9506 is tough, transparent and delivers shear strength that resists slippage and edge lifting. With excellent high temperature and UV resistance and some repositionability, it is ideal for graphic and nameplate attachment as well as membrane switch bonding. Tape is protected by a 58# polycoated kraft paper liner suitable for most die-cutting operations.

3M™ Adhesive Transfer Tape 9506 is suitable for a variety of general industrial applications, and is available in custom sizes.

Recommended Applications

General industrial joining applications

Graphic overlays and attachment

Laminating PC, ABS and PET

Bonding nameplates

Signage attachment

Bonding membrane switches

About High Performance Acrylic Adhesive 200MP

3M™ High Performance Acrylic Adhesive 200MP is an industry standard for graphic attachment and general industrial joining applications. It features outstanding adhesion to metal, polycarbonate (PC), ABS and polyester (PET), making it a popular choice across many industries. This adhesive provides some initial repositionability for placement accuracy when bonding to plastics. It also performs well after exposure to humidity and hot/cold cycles, providing confidence that the switch will perform through difficult environmental conditions and millions of actuations.

What are Adhesive Transfer Tapes?

In general, 3M adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. The tape consists of adhesive only, and does not have any type of carrier material such as film or paper. For application the tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside adhesive to the joining surface.

Better Science for Better Adhesives from 3M

Since 1925 when a lab assistant invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each industrial labeling and adhesive product like 3M™ Adhesive Transfer Tape 9506, to help businesses operate faster, better and more efficiently.

Excellent for economical graphic attachment and general industrial joining

Adhesive 200MP is the industry standard for graphic and nameplate attachment

5.0 mil acrylic adhesive performs even when exposed to humidity and hot/cold cycles

High adhesive shear strength helps resist slippage and edge lifting on HSE plastics

Provides some repositionability on plastics for precise alignment of graphics and parts

58# PCK liner adds stability for storage and die-cutting
