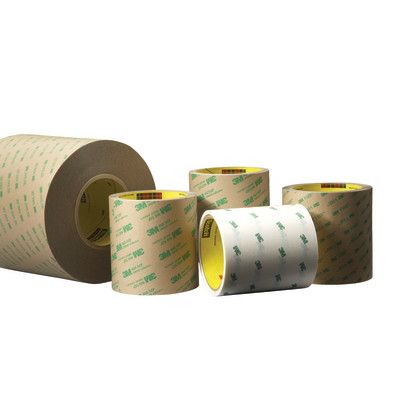

3M™ Adhesive Transfer Tape Double Linered 9555, Clear, 24 in x 36 in, 5 mil, 100 Sheet/Case

Name: 3M™ Adhesive Transfer Tape Double Linered 9555, Clear, 24 in x 36 in, 5 mil, 100 Sheet/Case
Brand: 3M
SKU: 7000048662

SKU

#7000048662

Part #: 31102

Call for Availability

For industrial/occupational use only. Not for consumer sale or use.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

3M™ Adhesive Transfer Tape Double Linered 9555 features 3M™ Industrial Acrylic Adhesive 220, which provides a good bond to HSE materials. This 5.0 mil adhesive is applied to a 4.2 mil polycoated kraft (PCK) paper liner, which protects it until it is ready to be bonded to the substrate.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

More Information
Specification(s)
UPC Code	00021200311024
Adhesive Type	Acrylic
Color Family	Transparent
Maximum Operating Temperature (Fahrenheit)	350.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)	-40.0 Degree Fahrenheit
Overall Length (Imperial)	36.0 in
Overall Width (Imperial)	24.0 in
Primary Liner	58# Polycoated Kraft Paper
Primary Liner Color	Tan
Primary Liner Thickness (Imperial)	4.2 mil
Product Key	9555
Product Number	9555
Secondary Liner	58# Polycoated Kraft Paper
Secondary Liner Color	Tan
Secondary Liner Thickness (Imperial)	4.2 mil
Shelf Life	18.0 Month
Substrate 1	Glass
Substrate 2	Glass
Total Tape Thickness without Liner (Imperial)	4.9 mil
Country of Origin	USA
Unit of Use - Customary Net Weight	0.689 LBS
Shipping Quantity	100.0
Brand	3M

Product Information

Economical Solution for Durable Bonds

Featuring a thin 5.0 mil adhesive and durable twin PCK liners, our 3M™ Adhesive Transfer Tape Double Linered 9555 adds efficiency and ease of use to a range of general industrial joining jobs. It features 3M™ Adhesive 220, which is formulated for good initial adhesion to metal and HSE (high surface energy) plastics. The thicker adhesive helps improve wet-out and adhesion on textured surfaces.

Recommended Applications

General industrial

Metal bonding

Painted metal bonding

Applying nameplates, appliques and decorative trim to HSEs

Graphic attachment

Lamination to sub-surface printed polycarbonate, polyester graphic overlay materials

What are Adhesive Transfer Tapes?

Adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off. A variety of adhesive properties and liners are available to meet requirements for applications such as nameplate attachment to high and low surface energy plastics, appliance graphic overlays that perform in high temperatures, foam gasketing, web splicing, signs, posters, banners, point-of-purchase displays, and more.

Bringing Better Ideas to the Surface through Science

In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.

5 mil nominal 220 adhesive offers good sheer strength

Thicker adhesives improve wet-out and adhesion on textured surfaces

Good peel adhesion to HSE (high surface energy) materials

Two 58 lb. PCK liners protect adhesive and peel away quickly for easy handling

Economical solution for a variety of general bonding applications
