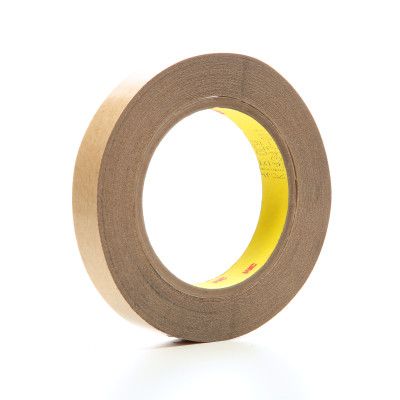

3M™ Double Coated Tape 415, Clear, 3/4 in x 36 yd, 4 mil, 48 Rolls/Case

Name: 3M™ Double Coated Tape 415, Clear, 3/4 in x 36 yd, 4 mil, 48 Rolls/Case
Brand: 3M
SKU: 7000042757

SKU

#7000042757

Part #: 03322

Call for Availability

For industrial/occupational use only. Not for consumer sale or use.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

3M™ Double Coated Tape 415 is a double coated tape that offers a balance of high initial adhesion and good holding power on a variety of substrates, especially paper. Double sided adhesion increases dimensional stability for easy handling, making it an ideal choice for both zero speed and flying splices during printing.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

More Information
Specification(s)
Part number	415
UPC Code	00021200033223
Adhesive Type	Acrylic
Backing (Carrier) Material	Polyester
Back Side Adhesive Thickness (Imperial)	1.5 mil
Back Side Adhesive Type	High Tack Acrylic 400
Color Family	Transparent
Face Side Adhesive Thickness (Imperial)	1.5 mil
Face Side Adhesive Type	High Tack Acrylic 400
Indoor/Outdoor	Indoor/Outdoor
Maximum Operating Temperature (Fahrenheit)	180.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)	-40.0 Degree Fahrenheit
Overall Length (Imperial)	36.0 yd
Overall Width (Imperial)	0.7 in
Primary Liner	60# Densified Kraft Paper
Primary Liner Color	Tan
Primary Liner Thickness (Imperial)	4.0 mil
Product Color	Transparent
Product Key	415
Product Number	415
Total Tape Thickness without Liner (Imperial)	4.0 mil
Country of Origin	USA
Unit of Use - Customary Net Weight	0.321 LBS
Shipping Quantity	48.0
Brand	3M

Product Information

Ongoing Production

3M™ Double Coated Tape 415 is a 4.0 mil double coated polyester tape with 3M™ Acrylic Adhesive 400 mounted on a 60. lb densified kraft paper liner. It offers excellent UV resistance, with good temperature and humidity resistance for high performance splicing during rigorous printing applications. This tape will perform well up to 180°F/82°C in the short term, and up to 150°F/65°C for days or weeks. It adheres well to a variety of high and low surface energy substrates including metals, glass, wood, paints and many plastics, as well as most grades of paper, films and foils, and clay coated and corrugated paper stock.

Recommended Applications

High-speed flying splices on most grades of paper

Zero speed splices on most grades of paper

Web splicing

Core starting

Films and foils

Adhere with Confidence

3M™ Adhesive 400 is a medium-firm pressure sensitive acrylic adhesive system. It features an excellent balance of good initial adhesion (quick stick) and good shear holding power. Shear strength is the measure of pull force directed across the bonded surface, forcing the two surfaces to slide over each other. 3M™ Adhesive 400 demonstrates a consistently strong bond across a range of temperatures, up to 250°F/121°C. A thin, tough, polyester film carrier between the adhesive layers improves the handling and strength of the tape. By using a robust 60 lb. densified kraft paper release liner, this tape provides reliable performance for industrial applications such as die-cutting and automated dispensers.

What is Double Coated Tape?

In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobby.

Bringing Better Ideas to the Surface through Science and Innovation

The 3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.

Ideal for printing applications, with high tack and adhesion to most paper stocks

Double sided adhesion increases dimensional stability for easy handling during print splicing

Excellent UV, moderate temperature and good humidity resistance to ensure performance in a variety of situations

Densified kraft paper liner ensures easy handling

Good adhesion to a variety of substrates, including low and high surface energy substrates
