3M™ Double Coated Tape 415, Clear, 27 in x 36 yd, 4 mil, 1 Roll/Case
3M™ Double Coated Tape 415, Clear, 27 in x 36 yd, 4 mil, 1 Roll/Case
| Specification(s) | |
|---|---|
| UPC Code | 00021200670961 |
| Adhesive Type | Acrylic |
| Backing (Carrier) Material | Polyester |
| Back Side Adhesive Thickness (Imperial) | 1.5 mil |
| Back Side Adhesive Type | High Tack Acrylic 400 |
| Color Family | Transparent |
| Face Side Adhesive Thickness (Imperial) | 1.5 mil |
| Face Side Adhesive Type | High Tack Acrylic 400 |
| Indoor/Outdoor | Indoor/Outdoor |
| Maximum Operating Temperature (Fahrenheit) | 180.0 Degree Fahrenheit |
| Minimum Operating Temperature (Fahrenheit) | -40.0 Degree Fahrenheit |
| Overall Length (Imperial) | 36.0 yd |
| Overall Width (Imperial) | 27.0 in |
| Primary Liner | 60# Densified Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 4.0 mil |
| Product Color | Transparent |
| Product Number | 415 |
| Total Tape Thickness without Liner (Imperial) | 4.0 mil |
| Country of Origin | USA |
| Unit of Use - Customary Net Weight | 10.699 LBS |
| Shipping Quantity | 1.0 |
| Brand | 3M |
Ongoing Production

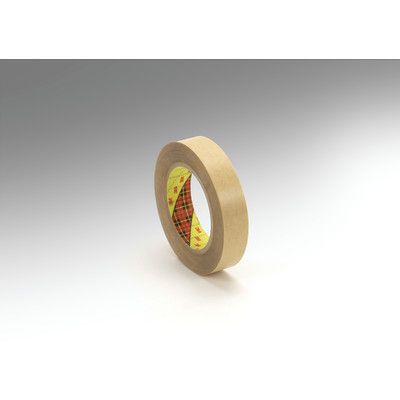

3M™ Double Coated Tape 415 is a 4.0 mil double coated polyester tape with 3M™ Acrylic Adhesive 400 mounted on a 60. lb densified kraft paper liner. It offers excellent UV resistance, with good temperature and humidity resistance for high performance splicing during rigorous printing applications. This tape will perform well up to 180°F/82°C in the short term, and up to 150°F/65°C for days or weeks. It adheres well to a variety of high and low surface energy substrates including metals, glass, wood, paints and many plastics, as well as most grades of paper, films and foils, and clay coated and corrugated paper stock.
Recommended Applications
High-speed flying splices on most grades of paper
Zero speed splices on most grades of paper
Web splicing
Core starting
Films and foils
Adhere with Confidence
3M™ Adhesive 400 is a medium-firm pressure sensitive acrylic adhesive system. It features an excellent balance of good initial adhesion (quick stick) and good shear holding power. Shear strength is the measure of pull force directed across the bonded surface, forcing the two surfaces to slide over each other. 3M™ Adhesive 400 demonstrates a consistently strong bond across a range of temperatures, up to 250°F/121°C. A thin, tough, polyester film carrier between the adhesive layers improves the handling and strength of the tape. By using a robust 60 lb. densified kraft paper release liner, this tape provides reliable performance for industrial applications such as die-cutting and automated dispensers.
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobby.
Bringing Better Ideas to the Surface through Science and Innovation
The 3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers deliver competitive products to the market faster and more efficiently.
