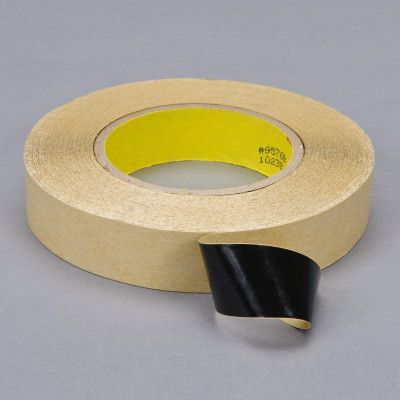

3M™ Double Coated Tape 9576B, Black, 1 in x 60 yd, 4 mil, 36 Roll/Case
3M™ Double Coated Tape 9576B, Black, 1 in x 60 yd, 4 mil, 36 Roll/Case
| Specification(s) | |
|---|---|
| UPC Code | 00021200404764 |
| Backing (Carrier) Material | Polypropylene Film |
| Backing (Carrier) Thickness (Imperial) | 1.0 mil |
| Back Side Adhesive Thickness (Imperial) | 1.5 mil |
| Back Side Adhesive Type | High Tack Acrylic 400 |
| Color Family | Black |
| Face Side Adhesive Thickness (Imperial) | 1.5 mil |
| Face Side Adhesive Type | High Tack Acrylic 400 |
| Maximum Operating Temperature (Fahrenheit) | 165.0 Degree Fahrenheit |
| Minimum Operating Temperature (Fahrenheit) | -40.0 Degree Fahrenheit |
| Overall Length (Imperial) | 60.0 yd |
| Overall Width (Imperial) | 1.0 in |
| Primary Liner | 60# Densified Kraft Paper |
| Primary Liner Color | Tan |
| Primary Liner Thickness (Imperial) | 4.0 mil |
| Product Color | Black |
| Product Number | 9576B |
| Total Tape Thickness without Liner (Imperial) | 4.0 mil |
| Country of Origin | USA |
| Unit of Use - Customary Net Weight | 0.627 LBS |
| Shipping Quantity | 36.0 |
| Brand | 3M |
Ideal for Rigorous Splicing Applications
3M™ Double Coated Tape 9576B is a double-sided tape with a hand tearable black polypropylene carrier lined on both sides with 3M™ Adhesive 400. Once bonded, this tape provides excellent peel and shear strength – making it ideal for rigorous splicing applications and bonding plastics to metals. 3M™ Double Coated Tape 9576B is mounted on a tan 60# densified kraft paper liner for ease in die cutting applications.
Recommended Applications
Web splicing
Core starting
General purpose bonding
Provides Reliable Performance
The medium-firm pressure sensitive acrylic adhesive system features an excellent balance of good initial adhesion (quick stick) and good shear holding power. The formulation gives a consistently strong bond across a range of temperatures, up to 165°F (75°C). A thin, tough, polypropylene carrier between the adhesive layers improves the handling and strength of the tape. By using a robust 60 lb. densified kraft paper release liner, this tape provides reliable performance for industrial applications, such as die-cutting and automated dispensers.
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobby, and the web processing industry, among others.
