3M™ Double Coated Tape Paper Liner GPT-020, 50 mm x 50 m, 6 Roll/Case

3M™ Double Coated Tape Paper Liner GPT-020, 50 mm x 50 m, 6 Roll/Case

SKU
#7100269705
Part #: 05295
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

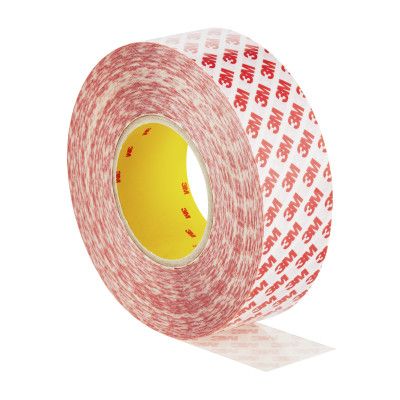

3M™ Double Coated Tape GPT-020 is a transparent double coated pressure sensitive adhesive (PSA) tape with clear polyester carrier delivered on a paper liner. The tape is transparent and 200 microns (8 mils) thick. It features a modified solventless acrylic adhesive that combines a high level of peel and shear performance enabling high adhesion to a wide variety of substrates, both to high and some low surface energy materials. It offers high initial tack and humidity resistance, and provides high temperature resistance up to 375°F (190°C) with 500g/1”x1” and up to 320°F (160°C) with 1000g/1”x1”per SAFT, PSTC 17.
More Information
Specification(s)
Part numberGPT-020
UPC Code04064035052959
Adhesive TypeHigh Tack Acrylic
Backing (Carrier) MaterialPaper
Backing (Carrier) Thickness (Imperial)0.47 mil
Back Side Adhesive Thickness (Imperial)3.75 mil
Back Side Adhesive TypeAcrylic
Color FamilyTransparent
Face Side Adhesive Thickness (Imperial)3.75 mil
Face Side Adhesive TypeAcrylic
Maximum Operating Temperature (Fahrenheit)330.0 Degree Fahrenheit
Overall Length (Imperial)54.7 yd
Overall Width (Imperial)2.0 in
Primary Liner58# Polycoated Kraft Paper (PCK)
Primary Liner ColorWhite
Primary Liner Thickness (Imperial)3.9 mil
Product ColorTransparent
Product Sub-CategoryDouble Coated Tapes
Shelf Life18.0 Month
Total Tape Thickness without Liner (Imperial)7.95 mil
Country of OriginPOL
Shipping Quantity6.0
Brand3M


  • Versatile and capable of bonding a wide variety of substrates from high to low surface energy
  • High initial tack and humidity resistance
  • High temperature resistance up to 375°F (190°C) per SAFT, PSTC 17 with 500g/1”x1”
