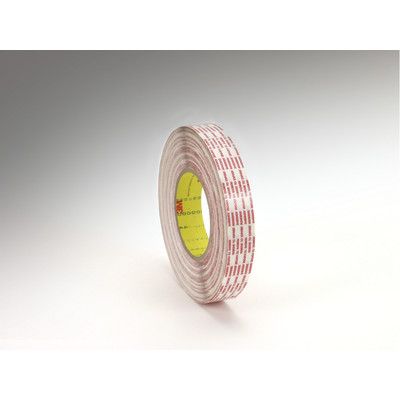

3M™ Double Coated Tape Extended Liner 476XL, Translucent, 1 in x 540 yd, 6 mil, 6 Roll/Case
3M™ Double Coated Tape Extended Liner 476XL, Translucent, 1 in x 540 yd, 6 mil, 6 Roll/Case
| Specification(s) | |
|---|---|
| UPC Code | 00021200305979 |
| Backing (Carrier) Material | Polypropylene Film |
| Back Side Adhesive Thickness (Imperial) | 3.0 mil |
| Back Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Color Family | Transparent |
| Face Side Adhesive Thickness (Imperial) | 3.0 mil |
| Face Side Adhesive Type | Synthetic Rubber Adhesive 760 |
| Maximum Operating Temperature (Fahrenheit) | 120.0 Degree Fahrenheit |
| Minimum Operating Temperature (Fahrenheit) | -40.0 Degree Fahrenheit |
| Overall Length (Imperial) | 540.0 yd |
| Overall Width (Imperial) | 1.0 in |
| Primary Liner | 42.5# Densified Kraft Paper |
| Primary Liner Color | White |
| Primary Liner Thickness (Imperial) | 3.0 mil |
| Product Color | Translucent |
| Total Tape Thickness without Liner (Imperial) | 2.5 mil |
| Country of Origin | USA |
| Unit of Use - Customary Net Weight | 6.442 LBS |
| Shipping Quantity | 6.0 |
| Brand | 3M |
Easy Liner Starting and Removal Helps Keep Jobs Running Smoothly
3M™ Double Coated Tapes Extended Liner are constructed with either a polypropylene film or tissue carrier and densified kraft white paper liner that extends beyond the width of the rubber adhesive to provide easy liner starting and removal. The products provide a dry edge or finger lift edge on each side of the tape for easy liner removal.
Recommended Applications
Closure of overnight or express boxes, tubes and envelopes
Point-of-purchase displays
Automated tape application equipment
Mounting promotional items
Core starting
Heavy duty sealing
Reliable Sealing on a Variety of Substrates
3M™ Double Coated Tape Extended Liner portfolio offers two rubber adhesive solutions for bonding to many shipping boxes and tubes as well as permanent paper to paper bonding:
3M™ Adhesive 760 Synthetic Rubber provides excellent quick stick / initial adhesion and is used on many coated, uncoated and synthetic paper applications. Products featuring Adhesive 760 include: 3M™ Double Coated Extended Liner Tape 476XL
3M™ Adhesive 770 Rubber Resin offers high initial adhesion to a wide variety of materials. Products featuring Adhesive 770 include: 3M™ Double Coated Extended Liner Tape 9925XL
Understanding Double Coated Tapes
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts, and hobby.
