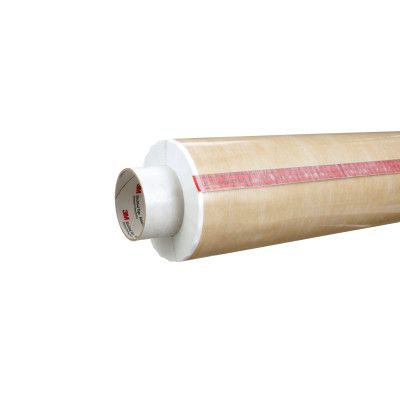

3M™ Composite Film Electrical Tape 44, 23-1/2 in x 90 yd, Log Roll Untrimmed, 1 Roll/Case

3M™ Composite Film Electrical Tape 44, 23-1/2 in x 90 yd, Log Roll Untrimmed, 1 Roll/Case

SKU
#7000036239
Part #: 52710
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
More Information
Specification(s)
Part number44LOG 23.5"X90YD
UPC Code00051138527105
Adhesive TypeThermosetting Rubber
ApplicationInsulation
Backing (Carrier) MaterialPolyester
Color FamilyTransparent
Dielectric Strength5500.0 V
Electrolytic Corrosion Factor1.0
Elongation at Break50.0 %
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Fahrenheit)266.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)32.0 Degree Fahrenheit
Overall Length (Imperial)90.0 yd
Overall Width (Imperial)23.5 in
Product MarketsElectrical Equipment Manufacturing
Shelf Life5.0 Year
Specifications MetUL Listed
Total Tape Thickness without Liner (Imperial)5.25 mil
Country of OriginUSA
Unit of Use - Customary Net Weight18.265 LBS
Shipping Quantity1.0
Brand3M

3M™ Composite Film Electrical Tape 44 features a combination of polyester web and polyester film coated with pressure sensitive rubber thermosetting adhesive. This tape is resistant to heat, oxidation, solvents and oils.

The pressure-sensitive, thermosetting rubber adhesive offers strong adherence and helps make this tape excellent for stick wound coils and transformers. It also protects start wires, leads, terminal strips, insulation paper, and end turns. This tape requires no heat, preparation or moisture before application.

Tape is UL510A Standard, Category OANZ2, File No. E17385, CSA Certified, Standard C22.2 No. 66, File No. 093411, Class 9052-30. For more details on regulatory compliance, visit www.3m.com/regs.

When you need an electrical tape that's tough, puncture-resistant, and has outstanding electrical properties, use the 3M™ Composite Film Electrical Tape 44.


  • COMMON USE: For use in applications such as stick-wound coil/transformer and in bobbin-wound coils for banding, anchoring and insulating
  • TOUGH DURABILITY: Puncture-resistant and offers great electrical properties
  • NO ADDITIONAL TOOLS NEEDED: No heat, moisture or other preparation is needed to apply adhesive
  • TEMPERATURE RANGE: Continuous operation not exceeding 130 °C (266 °F) per UL and CSA listings
  • COMPLIANCE: UL510A Standard, Category OANZ2, File No. E17385; CSA Certified, Standard C22.2 No. 66, File No. 093411, Class 9052-30
  • STABILITY: 5-year shelf life (from date of manufacture)
  • COMPLIANCE INFORMATION: For more compliance information, visit www.3m.com/regs
