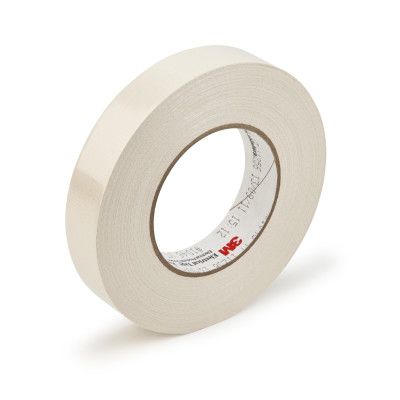

3M™ Filament-Reinforced Electrical Tape 1046, 1 in X 60 yds, Bulk, 3-in paper core, 36 Rolls/Case

3M™ Filament-Reinforced Electrical Tape 1046, 1 in X 60 yds, Bulk, 3-in paper core, 36 Rolls/Case

SKU
#7010350277
Part #: 60214
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Filament Reinforced Electrical Tape 1046 is a 7 mil thick, high tensile, electrical tape. It is suitable for insulating dry type transformers, as well as motor winding, end turn and wire hold applications. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).
More Information
Specification(s)
Part number1046 1"X60YD
UPC Code00051128602140
Adhesive TypeThermosetting Rubber
Product ColorTransparent
Total Tape Thickness without Liner (Imperial)7.0 mil
Country of OriginUSA
Unit of Use - Customary Net Weight0.564 LBS
Shipping Quantity36.0
Brand3M

3M™ Electrical Tape 1046 has a polyester film, filament reinforced backing and a thermosetting, rubber adhesive that offers optimized adherence. The backing has excellent electrical and physical characteristics. It is designed for applications that require excellent dielectric strength and mechanical strength. This tape is suitable for lead anchoring and the banding of coils where high edge tear resistance and low stretch are required. RoHS 2011/65/EU Compliant.


  • Polyester film, filament-reinforced backing and highly conformable, pressure-sensitive, thermosetting, rubber adhesive
  • Designed for applications that require excellent dielectric strength and mechanical strength
  • Suitable for insulating dry-type transformers, motor-winding and end-turn, wire-hold applications
  • Designed for excellent dielectric strength and mechanical strength applications
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • RoHS 2011/65/EU Compliant
