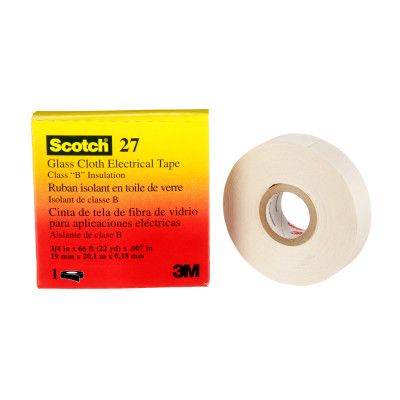

3M™ Glass Cloth Electrical Tape 27, 3/4 in x 66 ft, 50 Rolls/Case

3M™ Glass Cloth Electrical Tape 27, 3/4 in x 66 ft, 50 Rolls/Case

SKU
#7000005815
Part #: 15074
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Glass Cloth Electrical Tape 27 is a 7 mil woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.
More Information
Specification(s)
Part number27-3/4"X66'
UPC Code00054007150749
Adhesive TypeRubber
ApplicationElectrical Maintenance
Backing (Carrier) MaterialGlass Cloth
Color FamilyWhite
Dielectric Strength3000.0 V
Electrolytic Corrosion Factor0.9
Elongation at Break5.0 %
Insulation Resistance4.8 x 10^4 megohms
Maximum Operating Temperature (Fahrenheit)302.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)32.0 Degree Fahrenheit
Overall Length (Imperial)66.0 ft
Overall Width (Imperial)0.75 in
Product ColorWhite
Product MarketsElectrical MRO
Specifications MetCSA Certified
Total Tape Thickness without Liner (Imperial)7.0 mil
Country of OriginUSA
Shipping Quantity50.0
Brand3M

The 3M Glass Cloth Electrical Tape 27 is a great option when it comes to electrical jobs that require heat insulation, edge tear resistance and adaptable tape applications. The composite in its material is suitable for 600V rated, dry location application on motors and transformers.



3M Glass Cloth Electrical Tape 27 features a pressure sensitive, high temperature, thermosetting, rubber adhesive that offers exceptional bonding once adhered. This reactive compound results in a non-corrosive adhesive that offers solvent resistant protection; providing stability and reliability.

A 7-mil woven insulating glass cloth provides high mechanical strength, high temperature resistance and heat-stable insulation for heating units and oven controls, motor leads and switches. This glass cloth backing holds a feature suitable for tough 600V ratings and endures extreme temperature operations (low temperatures up to 302F / 0 to 150C) often presented in application environments. Resists rotting and shrinking after extended use.


  • PROVIDES A STRONG BOND: At extreme temperatures ranging from low temperature to 302F (up to 150C)
  • GLASS CLOTH BACKING: Optimally insulates with no shrinking or burning
  • INSULATES A VARIETY OF WAYS: Use as coil cover, anchor, banding, core layer and crossover insulation
  • PERFORMACE: Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
  • RELIABLE AND RESISTANT: Resists rotting and shrinking after extended use in a variety of environments
  • PRESSURE SENSITIVE ADHESIVE: Non–corrosive, solvent resistant, thermosetting rubber adhesive
  • CONFORMABLE: Suitable for complex tape applications
  • UL RECOGNIZED: UL Listed, CSA Certified.
