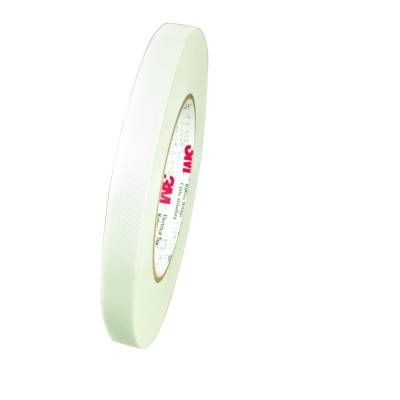

3M™ Glass Cloth Electrical Tape 79, .657 in x 60 yd, 3 in Paper Core, 52 Rolls/Case
3M™ Glass Cloth Electrical Tape 79, .657 in x 60 yd, 3 in Paper Core, 52 Rolls/Case
SKU
#7010320388
Part #:
51043
Call for Availability
3M™ Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).
| Specification(s) | |
|---|---|
| Part number | 79 0.65"X60YD |
| UPC Code | 00051138510435 |
| Adhesive Type | Acrylic |
| Color Family | White |
| Overall Length (Imperial) | 60.0 yd |
| Overall Width (Imperial) | 0.657 in |
| Product Color | White |
| Product Markets | Electrical Equipment Manufacturing |
| Total Tape Thickness without Liner (Imperial) | 7.0 mil |
| Country of Origin | USA |
| Unit of Use - Customary Net Weight | 0.512 LBS |
| Shipping Quantity | 52.0 |
| Brand | 3M |
3M™ Tape 79 has a pressure sensitive, acrylic adhesive that offers optimized adherence and resists edge tears. This conformable tape is solvent resistant and has a glass cloth backing that will not shrink, burn or rot while ensuring maximum stability. The printable tape is designed for banding and strapping applications. It provides excellent absorption of varnishes and resin. UL Listed and RoHS 2011/65/EU Compliant.
