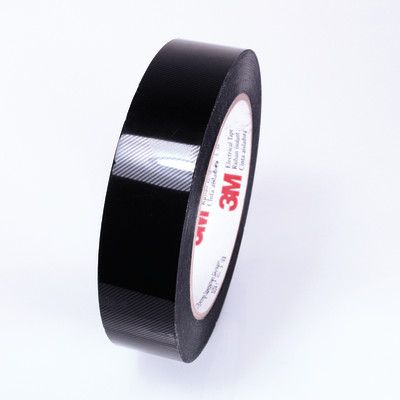

3M™ Polyester Film Electrical Tape 1350F-1, 24 in 72 yd Log, 3-in plastic core, Log roll, Black, 1 Roll/Case
3M™ Polyester Film Electrical Tape 1350F-1, 24 in 72 yd Log, 3-in plastic core, Log roll, Black, 1 Roll/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ 1350 Tape is an electrical insulating polyester film tape, which meets the flame retardancy requirements of UL 510. It consists of materials that are represented in many UL Recognized Insulation Systems and has a UL 130°C temperature rating. It also offers excellent flagging and solvent resistance; good wet grab; smooth, even unwind and is suitable for use on automated equipment.
Specification(s) | |
---|---|
Part number | 1350F1 B 24"X72YD |
UPC Code | 00051128582961 |
Adhesive Type | Acrylic |
Backing (Carrier) Material | Polyester |
Color Family | Black |
Dielectric Strength | 5500.0 V |
Electrolytic Corrosion Factor | 1.0 |
Insulation Resistance | > 10^6 megohms |
Maximum Operating Temperature (Fahrenheit) | 266.0 Degree Fahrenheit |
Minimum Operating Temperature (Fahrenheit) | 32.0 Degree Fahrenheit |
Overall Width (Imperial) | 24.0 in |
Product Color | Black |
Product Markets | Electrical Equipment Manufacturing |
Specifications Met | RoHS 2011/65/EU |
Total Tape Thickness without Liner (Imperial) | 2.5 mil |
Country of Origin | TAI |
Unit of Use - Customary Net Weight | 5.079 LBS |
Shipping Quantity | 1.0 |
Brand | 3M |
3M™ Electrical Tape 58 is a general-purpose, polyester film tape that has a thermosetting, rubber adhesive which provides excellent adherence. This high-temperature tape offers excellent resistance to chemicals, solvents, moisture, abrasion and cu- through. RoHS 2011/65/EU Compliant.
