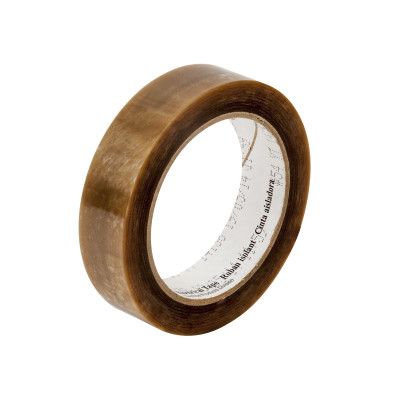

3M™ Polyester Film Electrical Tape 54, 22 1/2" x 72 YD LOG, 3" plastic core, 1 Roll/Case

3M™ Polyester Film Electrical Tape 54, 22 1/2" x 72 YD LOG, 3" plastic core, 1 Roll/Case

SKU
#7000006120
Part #: 69013
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Tape 54 is a polyester film electrical tape that is suitable for wrapping fine wire coils. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
More Information
Specification(s)
Part number54LOG 22.5"X72YD
UPC Code00051138690137
Adhesive TypeThermosetting Rubber
Backing (Carrier) MaterialPolyester
Dielectric Strength5000.0 V
Electrolytic Corrosion Factor1.0
Insulation Resistance>1 x 10^6 megohms
Maximum Operating Temperature (Fahrenheit)266.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)32.0 Degree Fahrenheit
Overall Width (Imperial)22.5 in
Product ColorTransparent
Specifications MetRoHS 2011/65/EU
Total Tape Thickness without Liner (Imperial)2.5 mil
Country of OriginUSA
Unit of Use - Customary Net Weight3.084 LBS
Shipping Quantity1.0
Brand3M

3M™ Polyester Film Electrical Tape 54 has a thermosetting, rubber adhesive that ensures firm adherence. This general purpose tape is highly conformable and resistant to chemicals, solvents, moisture, cut through and abrasion. UL Listed and RoHS 2011/65/EU Compliant.


  • Highly conformable with a thermosetting, rubber adhesive
  • Suitable for wrapping fine wire coils
  • General-purpose tape
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
