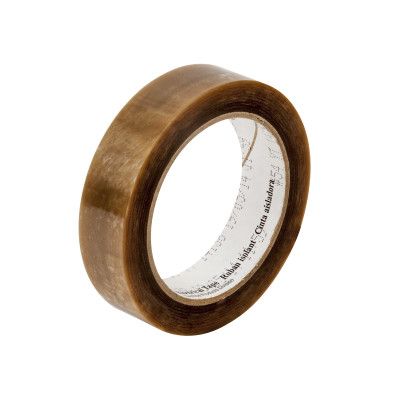

3M™ Polyester Film Electrical Tape 54, Translucent, Rubber Thermosetting Adhesive, 22.5 in x 72 yd, Log Roll, 1 Roll/Case
3M™ Polyester Film Electrical Tape 54, Translucent, Rubber Thermosetting Adhesive, 22.5 in x 72 yd, Log Roll, 1 Roll/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ Tape 54 is a polyester film electrical tape that is suitable for wrapping fine wire coils. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Specification(s) | |
---|---|
Part number | 54 LOG 22.5"X72YD |
UPC Code | 00054007273998 |
Adhesive Type | Thermosetting Rubber |
Application | Insulation |
Backing (Carrier) Material | Polyester |
Color Family | Transparent |
Dielectric Strength | 5000.0 V |
Electrolytic Corrosion Factor | 1.0 |
Elongation at Break | 100.0 % |
Insulation Resistance | > 10^6 megohms |
Overall Length (Imperial) | 72.0 yd |
Overall Width (Imperial) | 22.5 in |
Product Color | Transparent |
Shelf Life | 5.0 Year |
Specifications Met | UL 510 |
Total Tape Thickness without Liner (Imperial) | 2.5 mil |
Country of Origin | USA |
Unit of Use - Customary Net Weight | 8.084 LBS |
Shipping Quantity | 1.0 |
Brand | 3M |
3M™ Polyester Film Electrical Tape 54 has a thermosetting, rubber adhesive that ensures firm adherence. This general purpose tape is highly conformable and resistant to chemicals, solvents, moisture, cut through and abrasion. UL Listed and RoHS 2011/65/EU Compliant.
