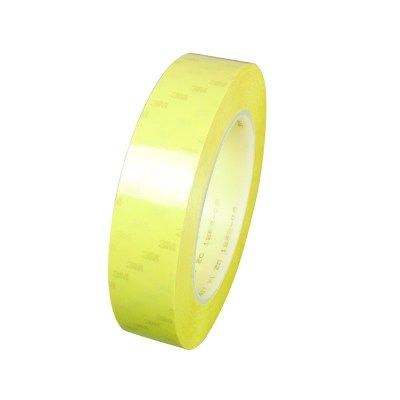

3M™ Polyester Film Electrical Tape 56, 1/4 in x 72 yd, Yellow, 144 Rolls/Case

3M™ Polyester Film Electrical Tape 56, 1/4 in x 72 yd, Yellow, 144 Rolls/Case

SKU
#7000133149
Part #: 56290
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
More Information
Specification(s)
Part number56-Y-1/4"X72YD
UPC Code00051128562901
Adhesive TypeThermosetting Rubber
Backing (Carrier) MaterialPolyester
Color FamilyYellow
Dielectric Strength5500.0 V
Electrolytic Corrosion Factor1.0
Insulation Resistance1 x 10^6 megohms
Maximum Operating Temperature (Fahrenheit)266.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)32.0 Degree Fahrenheit
Overall Length (Imperial)72.0 yd
Overall Width (Imperial)0.25 in
Product ColorYellow
Product MarketsElectrical Equipment Manufacturing
Rolls per Case144.0
Specifications MetCSA Certified
Total Tape Thickness without Liner (Imperial)2.5 mil
Country of OriginMEXICO
Unit of Use - Customary Net Weight0.084 LBS
Shipping Quantity144.0
Brand3M

3M™ Polyester Film Electrical Tape 56 is highly conformable with a thermosetting, rubber adhesive. This tape has a polyester film backing and offers excellent resistance to chemicals, solvents, moisture, abrasion and cut through. UL Listed and RoHS 2011/65/EU Compliant.


  • Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
  • Suitable for use as a coil cover and as layer insulation
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
