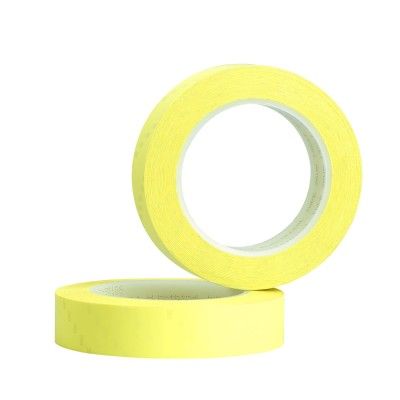

3M™ Polyester Film Electrical Tape 57, 1/2 in x 72 yd, Yellow, 72 Rolls/Case
3M™ Polyester Film Electrical Tape 57, 1/2 in x 72 yd, Yellow, 72 Rolls/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ Tape 57 is a polyester film, electrical tape. This tape is used to insulate applications that require excellent dielectric strength. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Specification(s) | |
---|---|
Part number | 57 1/2"X72YD |
UPC Code | 00051128565575 |
Adhesive Type | Thermosetting Rubber |
Backing (Carrier) Material | Polyester |
Color Family | Yellow |
Dielectric Strength | 7000.0 V |
Electrolytic Corrosion Factor | 1.0 |
Elongation at Break | 110.0 % |
Insulation Resistance | 1 x 10^6 megohms |
Maximum Operating Temperature (Fahrenheit) | 266.0 Degree Fahrenheit |
Minimum Operating Temperature (Fahrenheit) | 32.0 Degree Fahrenheit |
Overall Length (Imperial) | 72.0 yd |
Overall Width (Imperial) | 0.5 in |
Product Color | Yellow |
Product Markets | Electrical Equipment Manufacturing |
Rolls per Case | 72.0 |
Specifications Met | UL Recognized |
Total Tape Thickness without Liner (Imperial) | 3.5 mil |
Country of Origin | MEXICO |
Unit of Use - Customary Net Weight | 0.182 LBS |
Shipping Quantity | 72.0 |
Brand | 3M |
3M™ Polyester Film Electrical Tape 57 has a polyester film backing that offers resistance against chemicals, solvents, moisture, cut through and abrasion. This tape is highly conformable with a thermosetting, rubber adhesive. It is designed for use as layer insulation, a coil cover and a capacitor wrap where higher electrical strength is required. RoHS 2011/65/EU Compliant.
