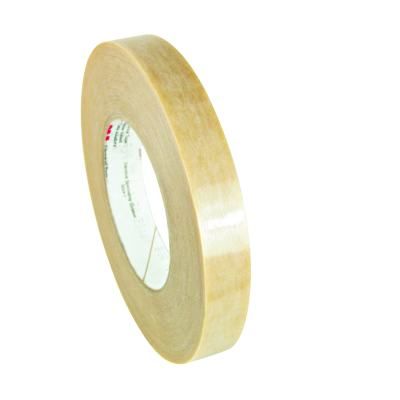

3M™ Polyester Film Electrical Tape 58, 1/4 in X 72 yd, Clear, 144 Rolls/Case

3M™ Polyester Film Electrical Tape 58, 1/4 in X 72 yd, Clear, 144 Rolls/Case

SKU
#7010045319
Part #: 56596
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Electrical Tape 58 is a general purpose, polyester film tape that has a thermosetting, rubber adhesive which provides excellent adherence. This high temperature tape offers excellent resistance to chemicals, solvents, moisture, abrasion and cu through. RoHS 2011/65/EU Compliant‎.
More Information
Specification(s)
Part number58 1/4"X72YD
UPC Code00051128565964
Adhesive TypeThermosetting Rubber
Backing (Carrier) MaterialPolyester
Color FamilyTransparent
Dielectric Strength7000.0 V
Electrolytic Corrosion Factor1.0
Elongation at Break110.0 %
Insulation Resistance1 x 10^6 megohms
Maximum Operating Temperature (Fahrenheit)266.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)32.0 Degree Fahrenheit
Overall Length (Imperial)72.0 yd
Overall Width (Imperial)0.25 in
Product ColorTransparent
Product MarketsElectrical Equipment Manufacturing
Rolls per Case144.0
Specifications MetUL Recognized
Total Tape Thickness without Liner (Imperial)3.5 mil
Country of OriginMEXICO
Unit of Use - Customary Net Weight0.18 LBS
Shipping Quantity144.0
Brand3M

3M™ Polyester Film Electrical Tape 58 is a general purpose, polyester film tape that has a thermosetting, rubber adhesive which provides excellent adherence. This high temperature tape offers excellent resistance to chemicals, solvents, moisture, abrasion and cut through. RoHS 2011/65/EU Compliant‎.


  • UL Recognized flame retardant
  • UL Recognized Class 130°C/CSA
  • Excellent Flagging Resistant
  • Printable
  • Solvent resistant without thermosetting
  • Excellent shelf life
