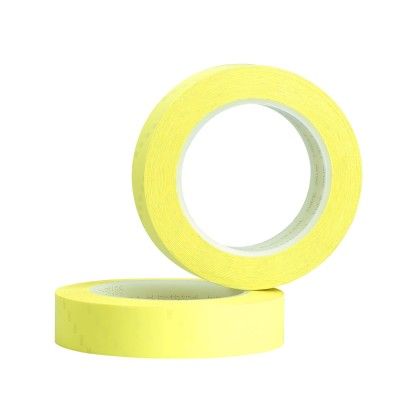

3M™ Polyester Film Electrical Tape 74, 1 in x 72 yd, Yellow, 36 Rolls/Case

3M™ Polyester Film Electrical Tape 74, 1 in x 72 yd, Yellow, 36 Rolls/Case

SKU
#7010045327
Part #: 56943
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Polyester Film Electrical Tape 74 is a 0.8 mil thick, general purpose, electrical tape with polyester film backing. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).
More Information
Specification(s)
Part number74 1"X72YD
UPC Code00051128569436
Adhesive TypeThermosetting Rubber
Backing (Carrier) MaterialPolyester
Color FamilyYellow
Dielectric Strength3500.0 V
Electrolytic Corrosion Factor1.0
Elongation at Break100.0 %
Insulation Resistance1 x 10^6 megohms
Maximum Operating Temperature (Fahrenheit)266.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)32.0 Degree Fahrenheit
Overall Length (Imperial)72.0 yd
Overall Width (Imperial)1.0 in
Product ColorYellow
Product MarketsElectrical Equipment Manufacturing
Rolls per Case36.0
Specifications MetUL Recognized
Total Tape Thickness without Liner (Imperial)0.8 mil
Country of OriginMEXICO
Unit of Use - Customary Net Weight0.18 LBS
Shipping Quantity36.0
Brand3M

3M™ Tape 74 has a thermosetting, rubber adhesive which offers excellent resistance to chemicals, solvents, moisture and cut through. This highly conformable tape provides high dielectric strength and withstands high temperature conditions. RoHS 2011/65/EU Compliant.‎


  • Thermosetting, rubber adhesive with polyester film backing offers excellent resistance to chemicals, solvents, moisture, abrasion and cut-through
  • Offers good electrical strength for coil applications where space is at a premium
  • General-purpose tape
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • RoHS 2011/65/EU Compliant
