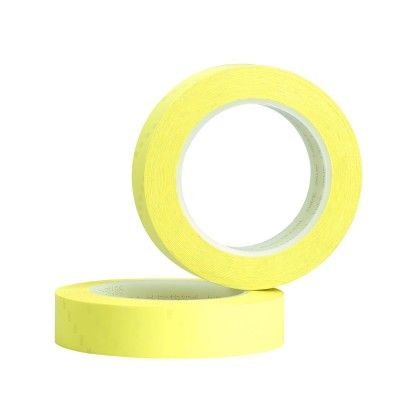

3M™ Polyester Film Electrical Tape 74, 3/8 in x 72 yd, Yellow, 96 Rolls/Case
3M™ Polyester Film Electrical Tape 74, 3/8 in x 72 yd, Yellow, 96 Rolls/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ Polyester Film Electrical Tape 74 is a 0.8 mil thick, general purpose, electrical tape with polyester film backing. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Specification(s) | |
---|---|
Part number | 74 3/8"X72YD |
UPC Code | 00051128569511 |
Adhesive Type | Thermosetting Rubber |
Backing (Carrier) Material | Polyester |
Color Family | Yellow |
Dielectric Strength | 3500.0 V |
Electrolytic Corrosion Factor | 1.0 |
Elongation at Break | 100.0 % |
Insulation Resistance | 1 x 10^6 megohms |
Maximum Operating Temperature (Fahrenheit) | 266.0 Degree Fahrenheit |
Minimum Operating Temperature (Fahrenheit) | 32.0 Degree Fahrenheit |
Overall Length (Imperial) | 72.0 yd |
Overall Width (Imperial) | 0.38 in |
Product Color | Yellow |
Product Markets | Electrical Equipment Manufacturing |
Rolls per Case | 96.0 |
Specifications Met | RoHS 2011/65/EU |
Total Tape Thickness without Liner (Imperial) | 0.8 mil |
Country of Origin | MEXICO |
Unit of Use - Customary Net Weight | 0.072 LBS |
Shipping Quantity | 96.0 |
Brand | 3M |
3M™ Tape 74 has a thermosetting, rubber adhesive which offers excellent resistance to chemicals, solvents, moisture and cut through. This highly conformable tape provides high dielectric strength and withstands high temperature conditions. RoHS 2011/65/EU Compliant.
