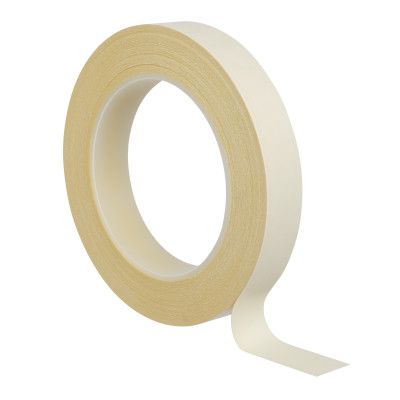

3M™ Polyester Film Electrical Tape 75, 3/4 in x 36 yd, paper core, 48 Rolls/Case
3M™ Polyester Film Electrical Tape 75, 3/4 in x 36 yd, paper core, 48 Rolls/Case
SKU
#7010045325
Part #:
56829
Call for Availability
3M™ Polyester Film Electrical Tape 75 is a double coated polyester film electrical tape for use in bonding applications requiring a positive insulation barrier.
| Specification(s) | |
|---|---|
| Part number | 75 3/4"X36YD |
| UPC Code | 00051128568293 |
| Adhesive Type | Thermosetting Rubber |
| Color Family | Yellow |
| Dielectric Strength | 6500.0 V |
| Electrolytic Corrosion Factor | 1.0 |
| Elongation at Break | 100.0 % |
| Insulation Resistance | 1 x 10^6 megohms |
| Maximum Operating Temperature (Fahrenheit) | 266.0 Degree Fahrenheit |
| Minimum Operating Temperature (Fahrenheit) | 32.0 Degree Fahrenheit |
| Overall Length (Imperial) | 36.0 yd |
| Overall Width (Imperial) | 0.75 in |
| Product Color | Yellow |
| Product Markets | Electrical Equipment Manufacturing |
| Rolls per Case | 48.0 |
| Specifications Met | UL Recognized |
| Total Tape Thickness without Liner (Imperial) | 3.5 mil |
| Country of Origin | MEXICO |
| Unit of Use - Customary Net Weight | 0.124 LBS |
| Shipping Quantity | 48.0 |
| Brand | 3M |
