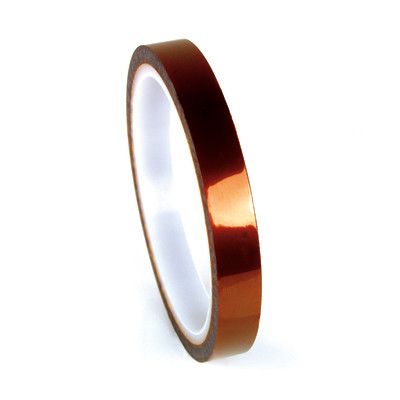

3M™ Polyimide Film Electrical Tape 1205, Amber, Acrylic Adhesive, 1 mil film, 7/8 in x 36 yd (22,23 mm x 33 m), 11/Case
3M™ Polyimide Film Electrical Tape 1205, Amber, Acrylic Adhesive, 1 mil film, 7/8 in x 36 yd (22,23 mm x 33 m), 11/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of 40 to 311 °F ( 40 to 155 °C) without the loss of electrical properties and tensile strength.
Specification(s) | |
---|---|
Part number | 1205 7/8"X36YD |
UPC Code | 00051138501891 |
Adhesive Type | Acrylic |
Color Family | Yellow |
Overall Length (Imperial) | 36.0 yd |
Overall Width (Imperial) | 0.875 in |
Product Color | Amber |
Product Markets | Electrical Equipment Manufacturing |
Specifications Met | RoHS 2011/65/EU |
Total Tape Thickness without Liner (Imperial) | 3.2 mil |
Country of Origin | USA |
Unit of Use - Customary Net Weight | 0.152 LBS |
Shipping Quantity | 11.0 |
Brand | 3M |
3M™ Electrical Tape 1205 has a pressure sensitive, acrylic adhesive that offers optimized adherence. This tape is designed for anchoring leads/terminal boards. It is ideal for use as wave solder masking tape in a printed circuit board assembly. This flame retardant tape is highly resistant to heat and solvents. UL Listed and RoHS 2011/65/EU Compliant.
