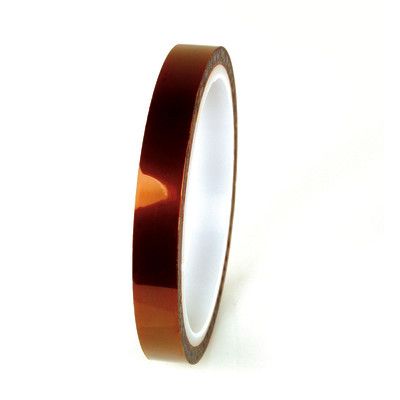

3M™ Polyimide Film Electrical Tape 1218, Amber, log rolls, 1 in x 36 yd, 9 Rolls/Case

3M™ Polyimide Film Electrical Tape 1218, Amber, log rolls, 1 in x 36 yd, 9 Rolls/Case

SKU
#7010349606
Part #: 56867
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Tape 1218 is an electrical tape that's suitable for high temperature, electrical applications that require thin, insulating material for wrapping capacitors, coils and harnesses. This tape has a polyimide film backing that offers exceptional heat and solvent resistance. This tape is 600V rated and withstands temperatures up to 356 °F (180 °C).
More Information
Specification(s)
Part number1218 1"X36YD
UPC Code00051128568675
Adhesive MaterialAcrylic
Adhesive TypeAcrylic
Backing (Carrier) MaterialPolyimide Film
Dielectric Strength6000.0 V
Electrolytic Corrosion Factor1
Elongation at Break55 Percent
Insulation Resistance1 x 10^6 megohms
Overall Length (Imperial)36.0 yd
Overall Width (Imperial)1.0 in
Product ColorAmber
Product MarketsElectrical Equipment Manufacturing
Specifications MetRoHS 2011/65/EU
Total Tape Thickness without Liner (Imperial)3.15 mil
Country of OriginTAI
Unit of Use - Customary Net Weight1.041 LBS
Shipping Quantity9.0
Brand3M

3M™ Polyimide Film Electrical Tape 1218 has a pressure sensitive, acrylic adhesive that provides high bonding strength and durability. It is suitable for use as a cover layer material for many flexible, printed circuits. UL Listed and RoHS 2011/65/EU Compliant.


  • Polyamide film backing provides exceptional heat and solvent resistance
  • Acrylic adhesive offers excellent adherence
  • Suitable for coils, harnesses and capacitor applications
  • Withstands temperatures up to 356 °F (180 °C)
  • Flame-retardant
  • UL Listed and RoHS 2011/65/EU Compliant
