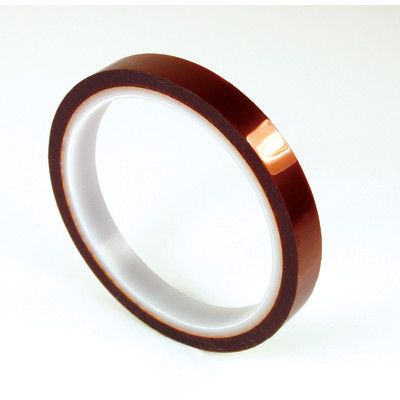

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1 mil film, 5/8 in x 36 yd (15,88 mm x 33 m), 15/Case

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1 mil film, 5/8 in x 36 yd (15,88 mm x 33 m), 15/Case

SKU
#7100181966
Part #: 49268
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 32 to 356 °F (0 to 180 °C).
More Information
Specification(s)
Part number92-5/8"X36YD
UPC Code00051138492687
Adhesive TypeSilicone
Backing (Carrier) MaterialPolyimide Film
Color FamilyYellow
Overall Length (Imperial)36.0 yd
Overall Width (Imperial)0.625 in
Product ColorAmber
Product MarketsElectrical Equipment Manufacturing
Specifications MetRoHS 2011/65/EU
Total Tape Thickness without Liner (Imperial)2.75 mil
Country of OriginUSA
Unit of Use - Customary Net Weight0.117 LBS
Shipping Quantity15.0
Brand3M

3M™ Polyimide Film Electrical Tape 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.


  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Flame-retardant and has polyamide backing
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Designed for anchoring leads and terminal boards
  • Withstands a temperature rating of -40 to 311 °F (-40 to 155 °C)
  • UL Listed and RoHS Compliant
  • UL Listed
