3M™ Polyimide Film Electrical Tape 98C-1, 500 mm x 33 m, 1 Roll/Case

3M™ Polyimide Film Electrical Tape 98C-1, 500 mm x 33 m, 1 Roll/Case

SKU
#7000038309
Part #: 98508
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

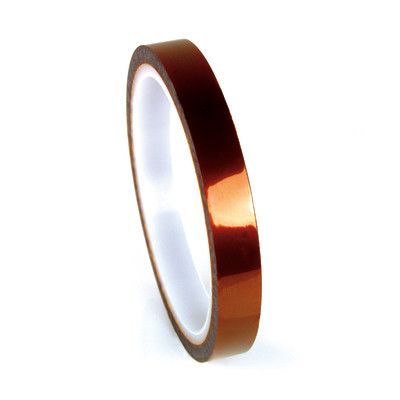

3M™ Electrical Tape 98C 1 has a 1 mil polyimide backing with silicone adhesive. It is designed for high temperature electrical applications in which a tough, thin insulation material is required for wrapping, such as in coils, transformers and capacitors.
More Information
Specification(s)
Part number98C-1LOG 500MMX33M
UPC Code00051138985080
Adhesive MaterialThermosetting Silicone
Adhesive TypeSilicone
ApplicationInsulation
Backing (Carrier) MaterialPolyimide Film
Color FamilyYellow
Dielectric Strength6000.0 V
Electrolytic Corrosion Factor1
Elongation at Break40 Percent
Insulation Resistance> 10^6 megohms
Overall Length (Imperial)36.0 yd
Overall Width (Imperial)15.5 in
Product ColorAmber
Shelf Life5.0 Year
Specifications MetRoHS 2011/65/EU
Total Tape Thickness without Liner (Imperial)2.6 mil
Country of OriginPRC
Shipping Quantity1.0
Brand3M


  • 1-mil polyimide backing
  • Silicone adhesive
  • UL recognized, file number E256906
  • Supplied on 3 inch cores
