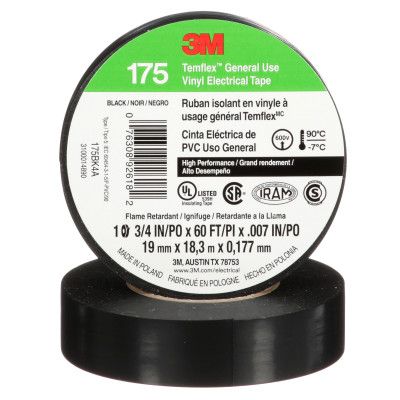

3M™ Temflex™ Vinyl Electrical Tape 175, Black, 3/4 in x 60 ft (19 mm x 18 m), 7 mil, 100 Rolls/Case
3M™ Temflex™ Vinyl Electrical Tape 175, Black, 3/4 in x 60 ft (19 mm x 18 m), 7 mil, 100 Rolls/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ Temflex™ Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is designed to perform in ambient temperatures up to 194°F (90°C). The tape is conformable for cold weather application down to 19°F (-7°C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk. No solvents are used in the manufacturing process.
Specification(s) | |
---|---|
Part number | 175BK4A |
UPC Code | 00076308926182 |
Adhesive Type | Rubber |
Application | Insulation |
Backing (Carrier) Material | PVC |
Color Family | Black |
Elongation at Break | 200.0 % |
Flame Retardant | Yes |
Maximum Operating Temperature (Fahrenheit) | 194.0 Degree Fahrenheit |
Minimum Operating Temperature (Fahrenheit) | 19.0 Degree Fahrenheit |
Overall Length (Imperial) | 60.0 ft |
Overall Width (Imperial) | 0.75 in |
Product Color | Black |
Shelf Life | 5.0 Year |
Tape Grade | General Use |
Total Tape Thickness without Liner (Imperial) | 0.007 in |
Voltage Rating | 600 V |
Country of Origin | POL |
Shipping Quantity | 100.0 |
Brand | 3M |
3M Temflex Vinyl Electrical Tape 175 is a 7-mil thick, high-performance general-purpose vinyl insulating tape. It is flame-retardant and designed to perform in ambient temperatures up to 194F (90C). The tape is conformable for cold weather application down to 19F (-7C). It has excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk. This versatile electric tape is compatible with rubber and synthetic splicing compounds, and is UL Listed and CSA Certified.
