3M™ Polyester Film/Mat Composite Film Tape 55, 23-1/2 in x 72 yd, Log Roll, 1 Roll/Case

3M™ Polyester Film/Mat Composite Film Tape 55, 23-1/2 in x 72 yd, Log Roll, 1 Roll/Case

SKU
#7000006005
Part #: 69780
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

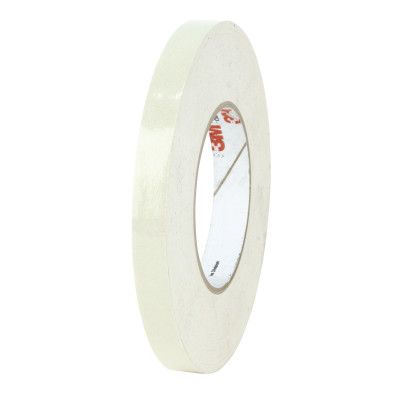

3M™ 55 Composite Film Electrical Tape is polyester web reinforced polyester film coated with a rubber pressure sensitive adhesive. Edge tear and puncture resistant with excellent electrical properties, it is tough and conformable. It is .0055 inch thick and is best used for coil cover, lead pad and core, layer and crossover insulation.
More Information
Specification(s)
Part number55 LOG 23.5"X72YD
UPC Code00054007697800
Adhesive TypeThermosetting Rubber
ApplicationInsulation
Backing (Carrier) MaterialPolyester
Color FamilyBeige
Dielectric Strength6000.0 V
Electrolytic Corrosion Factor1.0
Elongation at Break50.0 %
Insulation Resistance>1 x 10^6 megohms
Overall Length (Imperial)72.0 yd
Overall Width (Imperial)23.5 in
Product ColorWhite
Product MarketsElectrical Equipment Manufacturing
Shelf Life5.0 Year
Specifications MetUL 510
Total Tape Thickness without Liner (Imperial)7.25 mil
Country of OriginUSA
Unit of Use - Customary Net Weight14.866 LBS
Shipping Quantity1.0
Brand3M

This tape is especially well suited for use as a coil cover. For end turns, lead pad and core layer and crossover insulation


  • High edge-tear resistance
  • High puncture and abrasion resistance
  • Class B (130°C)
