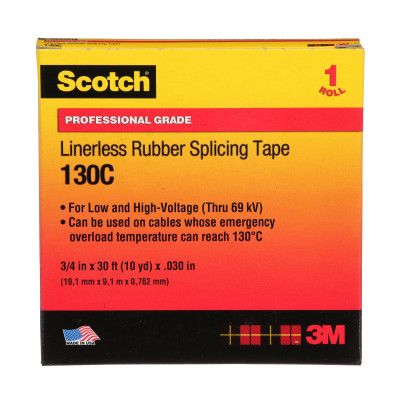

Scotch® Linerless Rubber Splicing Tape 130C, 3/4 in x 30 ft, Black, 1 roll/carton, 24 rolls/Case

Scotch® Linerless Rubber Splicing Tape 130C, 3/4 in x 30 ft, Black, 1 roll/carton, 24 rolls/Case

SKU
#7000006085
Part #: 41717
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
More Information
Specification(s)
Part number130C-3/4X30FT
UPC Code00054007417170
Adhesive TypeRubber
ApplicationInsulation
Application/IndustryUtility
Backing (Carrier) MaterialEthylene Rubber
Backing (Carrier) Thickness (Imperial)30.0 mil
Color FamilyBlack
Dielectric Strength750.0 V/mil
Elongation at Break850.0 %
FeaturesSelf-sticking
Insulation Resistance>10^15 ohms
Maximum Operating Temperature (Fahrenheit)194.0 Degree Fahrenheit
Overall Length (Imperial)30.0 ft
Overall Width (Imperial)0.75 in
Product ColorBlack
Product MarketsElectrical MRO
Rolls per Carton1.0
Rolls per Case24.0
Shelf Life5.0 Year
Specifications MetASTM D-4325
Tape GradePremium
Tensile Strength (Imperial)250.0
Total Tape Thickness without Liner (Imperial)30.0 mil
Voltage Rating69 kV
Country of OriginUSA
Shipping Quantity24.0
Brand3M

Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void free buildups. ASTM Approved and RoHS 2011/65/EU Compliant.


  • RUBBER-BASED ADHESIVE and the self-fusing, ethylene propylene, rubber backing provides UV resistance.
  • EXCELLENT PHYSICAL AND ELECTRICAL PROPERTIES promote moisture seal and void-free buildups.
  • DESIGNED FOR USE IN SPLICING and terminating wires and cables. Rated up to 90 degrees C (194 degrees F) continuous operating temperatures and short-term 130 degrees C (266 degrees F) overload service.
  • PROVIDES EXCELLENT THERMAL DISSIPATION of splice heat.
  • LINERLESS, SELF-BONDING, PRIMARY insulating tape rated through 69 kV (volts). This product can be used for low and high-voltage (through 69 kV) applications.
  • Meet ASTM D4388, D4325, and C518. RoHS 2011/65/EU Compliant.
