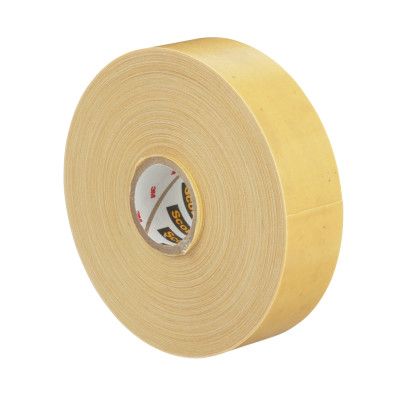

Scotch® Varnished Cambric Tape 2520, 1 in x 36 yd, Yellow, 36 rolls/Case
Scotch® Varnished Cambric Tape 2520, 1 in x 36 yd, Yellow, 36 rolls/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
Scotch® Tape 2520 is an 8 mil thick, highly conformable, premium grade tape that's suitable for bus bars, motor leads and service drop connections. It withstands temperatures up to 221 °F (105 °C).
Specification(s) | |
---|---|
Part number | 2520-1X36YD-K |
UPC Code | 00054007048336 |
Adhesive Type | Rubber Resin |
Application | Electrical Maintenance |
Application/Industry | Industrial Construction |
Backing (Carrier) Material | Cotton Cloth |
Color Family | Yellow |
Dielectric Strength | 800.0 V/mil |
Maximum Operating Temperature (Fahrenheit) | 220.0 Degree Fahrenheit |
Overall Length (Imperial) | 36.0 yd |
Overall Width (Imperial) | 1.0 in |
Product Color | Yellow |
Product Markets | Power Distribution |
Rolls per Carton | 1.0 |
Rolls per Case | 36.0 |
Shelf Life | 5.0 Year |
Specifications Met | RoHS 2011/65/EU |
Tape Grade | Professional |
Total Tape Thickness without Liner (Imperial) | 14.0 mil |
Country of Origin | USA |
Unit of Use - Customary Net Weight | 0.486 LBS |
Shipping Quantity | 36.0 |
Brand | 3M |
Scotch® Varnished Cambric Tapes are made from straight-cut woven cotton cambric fabric. The fabric is oil primed and coated with a high-grade yellow electrical insulating varnish. Varnished cambric tapes are flexible, electrically insulating and moisture resistant with a smooth finish. Scotch® Varnished Cambric Tape 2520 is yellow with a pressure-sensitive adhesive and 8 mils thick.
These tapes perform continuously in temperatures up to 105 °C (221 °F) with excellent resistance to abrasion, puncture and cut-through. The adhesive on Scotch® Varnished Cambric Tape 2520 holds the tape in position after application.
ASTM Approved and RoHS Compliant.
