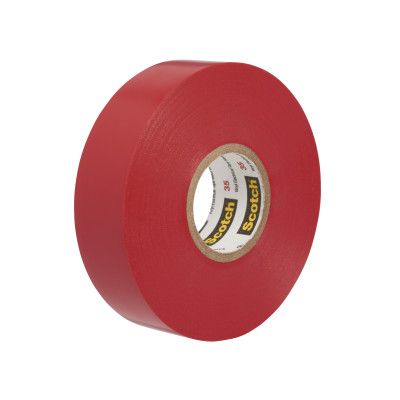

Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, Red, 10 rolls/carton, 100 rolls/Case

Scotch® Vinyl Color Coding Electrical Tape 35, 1/2 in x 20 ft, Red, 10 rolls/carton, 100 rolls/Case

SKU
#7000132636
Part #: 10224
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


Scotch® Vinyl Multi-Colored Electrical Tape 35 is a 7 mil thick, premium grade, electrical tape that comes in various colors. This flame retardant tape is suitable for wire and phase identification, color coding of motor leads and piping systems, and for marking safety areas. This tape is 600V rated and withstands a temperature range of 14 to 221 °F (-10 to 105 °C).
More Information
Specification(s)
Part number35-1/2X20FT-RD
UPC Code00054007102243
Adhesive TypeRubber
ApplicationElectrical Maintenance
Backing (Carrier) MaterialPVC
Dielectric Strength600.0 V
Electrolytic Corrosion Factor0.9
Elongation at Break225.0 %
Flame RetardantYes
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Fahrenheit)221.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)32.0 Degree Fahrenheit
Overall Length (Imperial)20.0 ft
Overall Width (Imperial)0.5 in
Product ColorRed
Product MarketsPower Distribution
Rolls per Carton10.0
Rolls per Case100.0
Shelf Life5.0 Year
Specifications MetCSA Certified
Tape GradeProfessional
Tensile Strength (Imperial)9.0 lb/in
Total Tape Thickness without Liner (Imperial)7.0 mil
Voltage Rating600 V
Country of OriginUSA
Shipping Quantity100.0
Brand3M

Scotch® Vinyl Electrical Tape 35 is a 7-mil thick, premium grade color-coding all-weather vinyl insulating tape. It is designed to perform in ambient temperatures up to 221 °F (105 °C). The tape is conformable for cold weather application down to 14 °F (-10 °C). It has excellent resistance to abrasion, moisture, alkalies, acids, corrosion and varying weather conditions (including UV exposure). The combination of an elastic PVC backing and aggressive pressure-sensitive rubber-based adhesive provides moisture-tight electrical and mechanical protection.

Ideal for insulating electrical wires and is compatible with synthetic cable insulations, jackets and splicing compounds.

UL Listed, VDE, CSA Certified and RoHS Compliant.


  • RESIDENTIAL, COMMERCIAL AND INDUSTRIAL ENVIRONMENTS: Used for harsh indoor and weather protected outdoor uses
  • EASILY IDENTIFIED: Insulation for electrical wiring and cable on cell sites
  • PERFECT FOR MARKING AND COLOR-CODING: Motor leads, piping systems, safety areas and more
  • FLAME-RETARDANT AND HIGHLY RESISTANT: To UV rays, abrasion, moisture, alkalis, solvents and many acids
  • OPERATING TEMPERATURE: Range of 14 to 221 °F (-10 to 105 °C)
  • COMPLIANCE: UL Listed, VDE, CSA Certified, RoHS Compliant
  • STABILITY: 5-year shelf life (from date of manufacture)
  • ⚠ WARNING: Cancer - www.P65Warnings.ca.gov. For more compliance information, visit www.3m.com/regs
