Scotch® Vinyl Electrical Tape 22, 1 in x 36 yd, Black, 12 rolls/carton, 48 rolls/Case

Scotch® Vinyl Electrical Tape 22, 1 in x 36 yd, Black, 12 rolls/carton, 48 rolls/Case

SKU
#7000042539
Part #: 10042
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

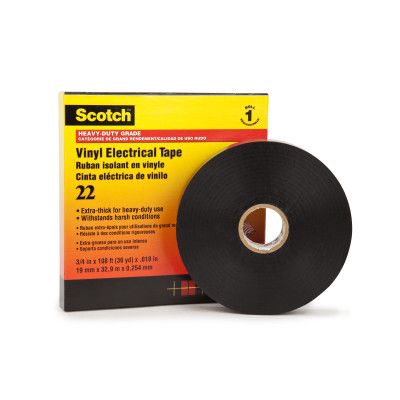

Scotch® Vinyl Electrical Tape 22 is a 10 mil thick, premium grade, heavy duty, vinyl electrical tape that's suitable for insulation applications requiring higher mechanical strength and abrasion resistance. The flame retardant tape is designed for low and high voltage bus applications and withstands a temperature range of 15 to 176 °F ( 10 to 80 °C).
More Information
Specification(s)
Part number22-1X36YD
UPC Code00054007100423
Adhesive TypeRubber
ApplicationElectrical Maintenance
Backing (Carrier) MaterialPVC
Color FamilyBlack
Elongation at Break200.0 %
Flame RetardantYes
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Fahrenheit)176.0 Degree Fahrenheit
Overall Length (Imperial)36.0 yd
Overall Width (Imperial)1.0 in
Product ColorBlack
Shelf Life5.0 Year
Specifications MetUL Listed
Tape GradeProfessional
Total Tape Thickness without Liner (Imperial)10.0 mil
Voltage Rating600 V
Country of OriginUSA
Shipping Quantity48.0
Brand3M

If you're in need of a heavy-duty mechanical insulation solution, Scotch® Tape 22 is the right tool to use. Its sturdy rubber-resin adhesive and elastic PVC backing provide reliable mechanical support and strong protection for various electrical projects. It's versatile as well, as it can be used for synthetic and solid dielectric cable insulation, cable jackets and splicing compound applications in temperatures ranging from 15 to 176 degrees F (-10 to 80 degrees C). This flame retardant vinyl tape withstands moisture, corrosion and different weather conditions, as well as chemical contact with alkalis and acids. This insulation tape is UL Listed, ASTM Approved, VDE, CSA Certified and RoHS 2011/65/EU Compliant.


  • The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
  • Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
  • Made of durable PVC
  • Withstands a temperature range of 15 to 176 °F (-10 to 80 °C)
  • UL Listed, ASTM Approved, VDE, CSA Certified and RoHS 2011/65/EU Compliant
