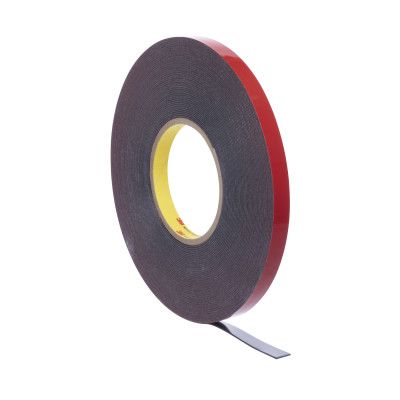

3M™ Automotive Acrylic Plus Attachment Tape 06386, Black, 1.12 mm, 1/4 in x 20 yd, 12 Roll/Case
3M™ Automotive Acrylic Plus Attachment Tape 06386, Black, 1.12 mm, 1/4 in x 20 yd, 12 Roll/Case
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.
3M™ Automotive Acrylic Plus Attachment Tape 06386 features two adhesives, one on each side of a 1.12mm closed-cell acrylic foam core. Liner-side adhesive is formulated for bonding to automotive paint systems. Non liner-side bonds to metals and plastics used in automotive components. Both adhesives deliver excellent initial tack and adhesive build. A ¼” width is suitable for exacting applications.
Specification(s) | |
---|---|
UPC Code | 00051131063860 |
Application | Automotive Exterior Attachment |
Backing (Carrier) Thickness (Imperial) | 0.044 in |
Color Family | Black |
Liner Color | Red |
Liner Material | FL-10 |
Overall Length (Imperial) | 20.0 yd |
Overall Width (Imperial) | 0.25 in |
Product Color | Black |
Product Number | 06386 |
Product Usage | Rocker Panels |
Thickness (in) | 0.045 in |
Thickness (mm) | 1.14 mm |
Country of Origin | USA |
Shipping Quantity | 12.0 |
Brand | 3M |
Two Adhesives for Automotive Parts and Paint Systems
Developed specifically for attaching exterior trim and other parts to automotive substrates, 3M™ Automotive Acrylic Plus Attachment Tape 06386 features a 1.12 mm acrylic foam core with two different adhesives – one for each side of the application. The liner-side adhesive provides very high initial and final adhesion for automotive paint surfaces, including scratch- and mar-resistant paint systems. The non-liner-side adhesive delivers excellent adhesion to plastic and metal surfaces commonly found in automotive trim and other components. The viscoelastic foam core conforms well even to complex geometries. It is engineered for stress relaxation when exposed to high stress loads, and maintains bond-line aesthetics under normal stress loads. The inconspicuous black color of 3M Acrylic Plus Attachment Tape 06386 ensures high satisfaction among consumers. The red, 3M branded liner is silicon-coated on both sides to provide easy one-piece release and efficient tape application. This tape is ¼” wide, and is recommended for lighter weight applications.
Confidence in Your Purchase
The 3M branded liner features a subtle 3M logo-marking to provide evidence to the customer that they are receiving the 3M quality they expect from their purchase. The liner makes 3M tapes easy to identify and difficult to imitate. This proprietary branding technology is designed to help identification of 3M™ Acrylic Foam Tapes.
3M recommends the use of 3M™ Automotive Adhesion Promoter 06396 for tape-to-part adhesion with 3M™ Automotive Acrylic Plus Attachment Tape 06386 on all plastic parts such as RIM, TPO, PPO, PP and PC.
Recommended Applications
Lightweight body side moldings
Wheel flares
Door edge moldings
Interior trim panels
Badges, nameplates and emblems
Better Science for Better Adhesion from 3M
Since 1925 when a 3M lab assistant invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations – and all of it goes into each 3M product developed for automotive OEM, like 3M™ Automotive Acrylic Plus Attachment Tape 06386.
