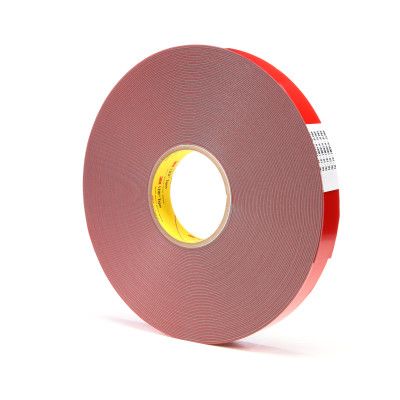

3M™ VHB™ Tape 4941F, Gray, 1 in x 36 yd, 45 mil, Film Liner, 9 Roll/Case

Name: 3M™ VHB™ Tape 4941F, Gray, 1 in x 36 yd, 45 mil, Film Liner, 9 Roll/Case
Brand: 3M
SKU: 7000048646

SKU

#7000048646

Part #: 24379

Call for Availability

For industrial/occupational use only. Not for consumer sale or use.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.

3M™ VHB™ Tape 4941F is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 5 mil red polyethylene film liner, delivering a total thickness of 45 mil (1.1 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4941F to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4941F.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Specifications

More Information
Specification(s)
UPC Code	00021200243790
Adhesive Type	Acrylic
Application	Mounting & Trim Attachment, Bonding Panels to Metal Frames, Panel to Frame/Stiffner to Panel Assembly, Gasket Assembly
Backing (Carrier) Material	Acrylic Foam
Backing (Carrier) Thickness (Imperial)	5.0 mil
Core Size (Imperial)	3.0 in
Foam Type	Conformable
Indoor/Outdoor	Indoor/Outdoor
Maximum Operating Temperature (Fahrenheit)	300.0 Degree Fahrenheit
Overall Length (Imperial)	36.0 yd
Overall Width (Imperial)	1.0 in
Product Color	Gray
Product Number	4941
Substrate	High Surface Energy, (400-1100 Dynes/cm)
Substrate 1	Metal
Substrate 2	Plasticized Vinyl
Country of Origin	USA
Unit of Use - Customary Net Weight	1.711 LBS
Shipping Quantity	9.0
Brand	3M

Product Information

Convenience Meets Extreme Bonding Power Our 3M™ VHB™ Tape consists of a durable acrylic adhesive with viscoelastic properties. This provides an extraordinarily strong double sided foam tape that adheres to a broad range of substrates, including aluminum, stainless steel, galvanized steel, composites, plastics, acrylic, polycarbonate, ABS and painted or sealed wood and concrete. Our bonding tapes provide excellent shear strength, conformability, surface adhesion and temperature resistance. They are commonly used in applications across a variety of markets including transportation, appliance, electronics, construction, sign and display and general industrial. Reliably bonds a variety of materials with strength and speed for permanent applications. Recommended Applications Decorative material and trim Nameplates and logos Electronic displays Panel to frame Stiffener to panel Dream, Design, Deliver with the 4941 Family of 3M™ VHB™ Tapes The 4941 family of 3M™ VHB™ Tapes utilizes multi-purpose acrylic adhesive on both sides of a conformable, foam core. The combination of strength, conformability and adhesion makes this family one of the most capable and well-rounded 3M™ VHB™ Tapes. It is specifically designed for good adhesion to metals, glass and other medium to high surface energy materials. Applications for this tape include stiffener bonding, sealing polycarbonate lens over LCD, windows to painted control panels and mounting vinyl wiring ducts and conduit channels. An Unconventional Foam Tape We invented 3M™ VHB™ Tapes in 19

FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure

SMOOTH AND SEAMLESS: With a thickness of 45 mil (1.1 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives

BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive

DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture

MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS

A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial

CERTIFIED: UL GREENGUARD™ and UL GREENGUARD™ Gold Certified; helps contribute to LEED® credits

DO MORE: Allows for the use of thinner, lighter-weight, and dissimilar materials when compared to rivets and welds

EXCELLENT BONDING AND SEALING: Features closed-cell acrylic chemistry, which is proven to withstand extreme environments
