3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 19 mm x 16,5 m, Log Roll, 1 Roll/Case

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 19 mm x 16,5 m, Log Roll, 1 Roll/Case

SKU
#7100017356
Part #: 47837
Call for Availability
For industrial/occupational use only. Not for consumer sale or use.

For industrial/occupational use only. Not for consumer sale or use.


3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice. Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage. For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.


3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.
More Information
Specification(s)
Part number1345 23"X18YD
UPC Code00054007478379
Adhesive TypeAcrylic
Backing (Carrier) MaterialTin Plate Copper Foil, Embossed
Backing (Carrier) Thickness (Imperial)1.4 mil
Overall Width (Imperial)0.75 in
Product ColorTin
Specifications MetRoHS 2011/65/EU
Country of OriginTAI
Unit of Use - Customary Net Weight12.236 LBS
Shipping Quantity1.0
Brand3M

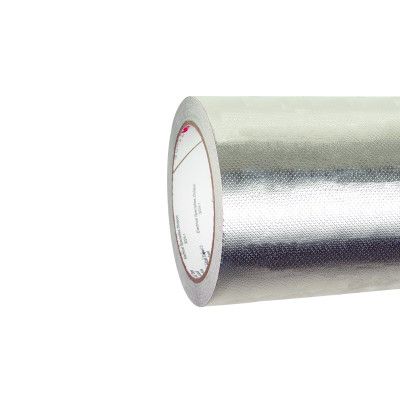

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345 is a high-quality, 4.1-mil thick coated tape used for various applications in the electronics industries and test laboratories for prototyping, design and troubleshooting.

This tape features a non-conductive, non-corrosive acrylic adhesive and tin-plated copper foil backing. The adhesive requires no heat, moisture or other preparation to apply.

It's solderable and can be die-cut, and the embossed pattern helps cut through the adhesive to make contact with the application surface.

The removable liner helps make this tape very easy to handle. The tape offers stable contact and good shielding for equipment, components and shielded rooms. The tape is flame retardant per UL-510A Standard, UL Component Recognized (UL510A Standard, Category OARC2, File No. E17385). For more details on regulatory compliance, visit www.3m.com/regs.

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345 is the superior choice for EMI shielding operations.


  • EMBOSSED PATTERN: Embossed pattern helps cut through adhesive to establish contact between the backing and application substrate
  • VERSATILE: For use in grounding, EMI shielding in equipment, components and shielded rooms
  • EASY-TO-USE: Die-cut, solder and use in a multitude of electrical design and test laboratory operations
  • NO ADDITIONAL TOOLS NEEDED: No heat, moisture or other preparation is needed to apply adhesive
  • COMPLIANCE: UL510A Standard, Category OARC2, File No. E17385
  • STABILITY: 5-year shelf life (from date of manufacture)
  • COMPLIANCE INFORMATION: For more compliance information, visit www.3m.com/regs
